Monthly Deals Factory Fiber Laser Engraving Etching Machine with Rotary Chuck

Product Description

China marking machine factory! CE FDA ISO

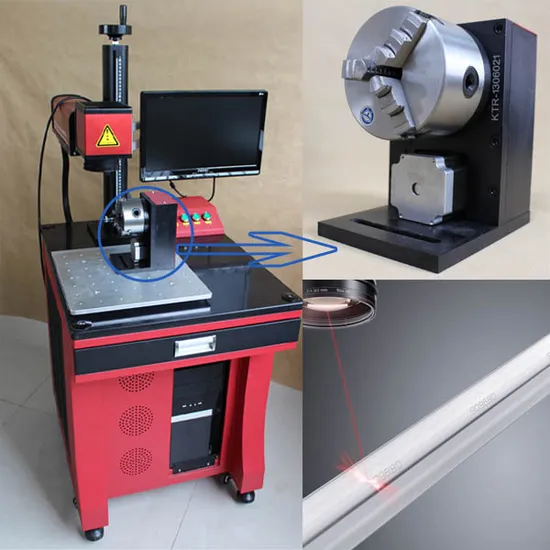

fiber laser marking machine with rotary chuck
20W 30W 50W 60W 100W 120W laser,suitable working on cylinders pipes bearings etc
KT-series high quality laser marking machine is a new generation laser marking system made with newest laser technique in the world,
It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function,
The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.
Specification:

Item no	KT-LF
Laser output	20W 30W 50W 60W 100W 120W
Max marking speed	800 characters/s, height of cahrater 1mm
Laser wavelength	1064nm
Beam quality(m2)	< 1.8 square metres
Standard marking area	100mm× 100mm
Marking depth	0.01-0.2mm, according to different materials
Whole machine power	800w
Min line width	0.01mm
Repeatabilityprecision	± 0.001mm
Cooling system	Air cooling

Advantages
1) USB interface connection: Will work with a Laptop.
2) Small and compact: The dimension of fiber marker is very small, convenient to be taken away.
3) High Precision, bring you the fantastic and satisfied marking effect.
4) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
5) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
7) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.
8) With Motorized Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.
Packaging and shipping

Model	KT-LF
Package	Each unit per plywood case
Outer dimension	90x70x115cm
Gross weight	150kg
Delivery date	Within 7 working days after payment received
Shipping	By sea/by air/international express posting(door to door)

marking sample:
Warranty
1. We supply the software which can assist the marking machine
2. Free design of fixtures as customers required and technical support.
3. We guarantee delivery time within 7 days
4. We can produce the marking machine as your request.
5. TWO years for laser source,one year for other spare parts
Certificate:
Our Factory:
