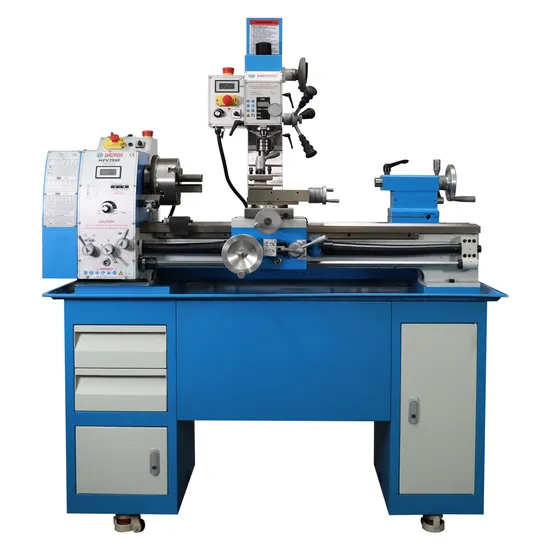

MPV290f Combination Lathe with Movable Mill Head

Product Description

Recommended Products
VM25L WBL290F WBP250F

WEISS MPV290F Lathe /Mill combination unit is great updated version compare to WEISS WBP290F with movable milling head allows more complicate working.
It comes fully equipped with work-holding and tool-holding equipment and accessories to get you started turning. drilling, milling, chambering, boring, and facing.
Hardened and ground lathe bed guideway
All guides can be adjusted by wedge strips
Camlock D1-4 spindle with large spindle bore 0 38 mm
Hardened main spindle is supported by high precision,Class 5, adjustable tapered roller bearings
Tailstock for taper turning 5 mm adjustable Moveable mill head based on linear guide way
Drilling and milling head can be swiveled by ±90°
Super heavy-duty stand
Multi-function wheel with height adjustment and locking function
Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBP290F
ITEM NO	10110316	Brushless DC motor	Steady Rest
Distance between centers	750mm	3-Jaw chuck (160mm)	Follow Rest
Swing over bed	Ø290mm	4-way tool post	Face Plate
Swing over cross slide	Ø165mm	Chuck guard	4-Jaw chuck 160mm
Width of bed	180mm	Splash guard	Threading Diail
Taper of spindle bore	MT5	Chip tray	2-Axis DRO (Magnetic Scales)
Spindle bore	38mm	Movable luxury stand with horizontal adjustment and lock function	Stand
Number of spindle speeds	Variable	Tools &Toolbox	Luxury Stand
Range of spindle speeds	50-2000rpm		Quick chage Tool Post (TOOA1)
Range of inch threads (imperial version)	8-56 T.P.I		Turning Tools
Range of metric threads (metric version)	0.2-3.5mm		ER25 coller chuck for lathe
Top slide travel	60mm		ER25 collet chuck of mill
Cross slide travel	140mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT3
Motor (brushless)	1500W
Mill and Drill	Movable mill head
Taper of tailstock quill	MT2
Spindle stroke	50mm
Spindle speed	50-2250rpm
Max.Distance spindle to table	375mm
Max.Distance spindle to column	185mm
Motor	750W
Packing size	1400x780x1070mm
Net weight	230kg

Detalis
Tool& Toolbox
Factory and Delivery
Certificate
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
