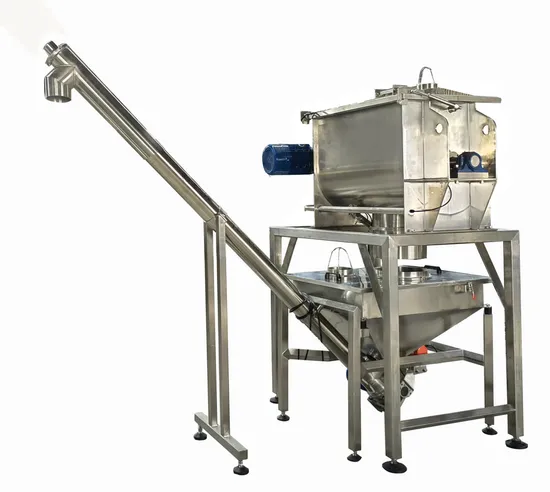

Drink Beverage Powder Ribbon Powder Mixing Machine
| US$20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DH-JD
Application
Granules, Powder
Application Area
Food
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
No
Heating Method
No
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Speed Control
Single Speed
Speed Range
30-39 R/min
Stirring Type
Spiral
Temperature Control
Without Heating
Working
Shear Mixer
Powder Mixing Machine
200L-2000L
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating Type
Continuous Operating
Warranty
1 Year
Transport Package
Plywood Wooden Carton
Specification
CE
Trademark
DAHEPACK
Origin
China
HS Code
84743900
Production Capacity
30units/Month
Product Description
Fruit powder handling system principle During the handling of fruit powder, the preservation of the natural gas taste of the fruit is essential. During the operation of the Neil mechanical fruit powder handling system, the natural aroma of the fruit powder is well preserved by vacuum delivery, so that no gravity The mixer mixes with the additive more efficiently, and the dust generated in this process is removed by the dust remover. After mixing, the fruit powder is bagged or canned through the automatic packaging machine, and the fruit powder after packaging is finished. After the weight selection check scale for further screening, the weight qualified products are then packed into the warehouse.The whole process is controlled by a control cabinet, saving manpower and high production efficiency.
Fruit powder handling system services The fruit powder processing system designed by Neil Machinery will retain the natural aroma of the fruit to the greatest extent and increase the value of the product. All equipment has reached the food-grade standard, and we provide customers with free overseas engineer services and free 3D drawings design, provide customers with product solutions quickly.
Main Technical Data
| Model | DH-JD-200 | DH-JD-300 | DH-JD-500 | DH-JD-1000 | DH-JD-1500 | DH-JD-2000 |
| Effective Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L |
| Turning Speed | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm |
| Total Weight | 250kg | 350kg | 500kg | 700kg | 1000kg | 1300kg |
| Total Power | 4kw | 5.5kw | 7.5kw | 11kw | 15kw | 22kw |
| Length(TL) | 1370 | 1550 | 1773 | 2394 | 2715 | 3080 |
| Width(TW) | 834 | 970 | 1100 | 1320 | 1397 | 1625 |
| Height(TH) | 1647 | 1655 | 1855 | 2187 | 2313 | 2453 |
| Length(BL) | 888 | 1044 | 1219 | 1500 | 1800 | 2000 |
| Width(BW) | 554 | 614 | 754 | 900 | 970 | 1068 |
| Height(BH) | 637 | 697 | 835 | 1050 | 1155 | 1274 |
| Radius(R) | 277 | 307 | 377 | 450 | 485 | 534 |
| Power Supply | 3P AC208-415V 50/60Hz | |||||
