Efficient Ht200 Electric Pipe Tapping Machine for 4-8 Inch
| US$3,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HT200
Drill Brand
Great Wall
Applications
Municipal Engineering
Impact Drill Structure
Cup-Type
Specification
4′′-8′′, HT200
Impact Drill Head
Core Drill
Drill shape
Round
Condition
New
Customized
Customized
Usage
Pipe Drilling Under Pressure
Suit Pipe Material
Steel / Ductile Iron / Cast Iron / Plastic Pipe
Suit Pipe Medium
Water, Gas , Oil, Steam
Hot Tapping Sizes
4′′ 6′′ 8′′
Motor
220V,1.5kw or 380V,2.2kw
Pressure/Flange
Pn10, Pn16, Pn25
Feed Mode
Electric Manual
Feed Volume
0.07-0.2 mm/R
Working Stroke
400mm
Spindle Speed
40 Rpm
Motor Power
220V, 1.5kw
Tapping Time
15-30 Min
Transport Package
Wooden Case
Trademark
GREAT WALL
Origin
China
HS Code
8467210000
Product Description

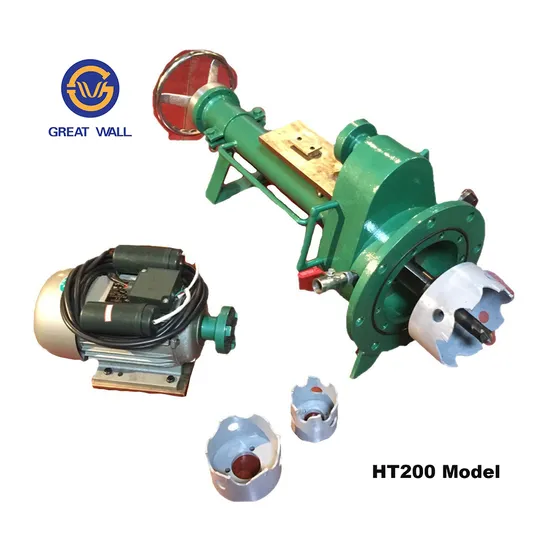

HT200 Model Electric Drive Hot Tapping MachineProduct Description
This machine is designed for hot tapping on the pipeline under pressure for the branch pipeline connection .
It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe .
And it is widely applied in water supply, natural gas supply, oil and chemical industry .
Product Features :
List of Models :
| Model | Range of Hot Tapping Size | Drive Mode | Feed Mode | Feed Volume | Working Stroke | Spindle Speed | Motor Power | Motor Voltage | Tapping Time |
| mm/inch | mm/r | mm | RPM | Kw | V | min | |||
| HT50 | DN25-DN50 3/4''-2'' | Manual | Manual | 1.5 | 240/350 | / | / | / | 10-20 |
| HT100 | DN50-DN100 2''-4'' | Electric | Manual | 0.07-0.2 | 370 | 53 | 0.75 | 220 | 15-30 |
| HT200 | DN100-DN200 4''-8'' | Electric | Manual | 0.07-0.2 | 500 | 40 | 1.5 | 220 | 15-30 |
| HT200 | DN50-DN200 2''-8'' | Electric | Manual | 0.07-0.2 | 500 | 40 | 1.5 | 220 | 15-30 |
| HT300 | DN100-DN300 4''-12'' | Electric | Manual | 0.07-0.2 | 600 | 40 | 1.5 | 220/380 | 15-30 |
| HT400 | DN250-DN400 10''-16'' | Electric | Manual | 0.07-0.15 | 600/800 | 30 | 1.5 | 380 | 15-40 |
| HT600 | DN500-DN600 20''-24'' | Electric | Manual/Automatic | 0.3 | 900 | 30 | 4 | 380 | 30-60 |
| HT800 | DN500-DN800 20''-32'' | Electric | Manual/Automatic | 0.3 | 1000 | 20 | 7.5 | 380 | 40-80 |
| HT1000 | DN500-DN1000 20''-40'' | Electric | Manual/Automatic | 0.3 | 1250 | 20 | 7.5 | 380 | 120-180 |
| HT1600 | DN1000-DN1600 40''-64'' | Electric | Manual/Automatic | 0.15-4 | 1450/2000 | 12 | 15 | 380 | 120-180 |
Note: 1 . Range of Hot Tapping Size : 2'' to 64'' 2. Range of Working Pressure : PN10, PN16, PN25
Hot Tapping Procedure :
Hot Tapping Case :
Company Profile :
Anqing Great Wall Pipeline Company have over 10 years experience of the production and development of
Electric and Manual Hot Tapping machine for water, oil and gas lines with the pressure rating of PN10, PN16 and PN25,
the range of hot tapping sizes from DN25mm up to DN1600mm.
our hot tapping machine are exported to the countries and regions including Singapore, Malaysia, Indonesia,
Taiwan, UAE, Chile, Argentina, Brazil and etc.
Hot Tapping Fitting :
Note: we supply the above hot tapping fitting as per specific dimension and pressure rating .
