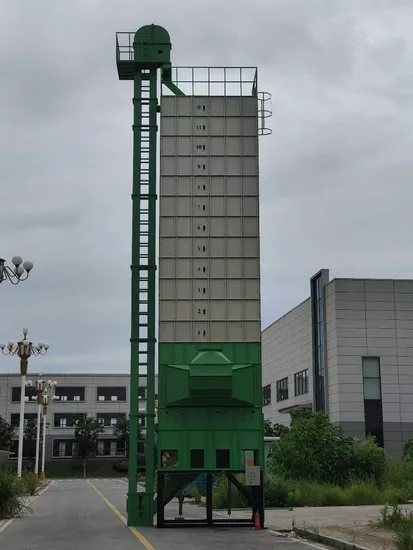

30 Ton Per Batch Rice Grain Dryer Without Auger

Product Description

Features:
Crushing-proof design, large blade auger (or no auger option).
Wear-resistant stainless steel drying layer, faster thermal conduction.
Large drying area, increased drying efficiency, uniform drying.
Low speed conveying, low grain crushing rate.
Touch screen design, automatic manual mode optional.
Various heat sources option, multiple safety devices.
Online moisture meter, Simple moisture setting.
Technical Parameters

Model	5HZV-6	5HZV-15	5HZV-20	5HZV-30
Loading Capacity (Paddy)	6 ton/batch	15 ton/batch	20 ton/batch	30 ton/batch
Overall Dimension (L*W*H)	3418*3180*7671mm	2588*3695*12775mm	4058*4137*11600mm	5290*4798*15020mm
Voltage	Three Phase 220V / 380V / 440V
Total Motor Power	4.903 kW	8.103 kW	10.77 kW	16.603 kW
Drying Rate	0.6~1.5% / h
Load Time	25~35 min	40~45 min	45~55 min	50~60 min
Discharge Time	20~30 min	40~50 min	40~45 min	50~60 min
Safety Device	Overload safety device, temperature control device, grain overload alarm, chain fault detector, timer switch, control fuse.

*The parameters are just for reference. Actual data will differ from grain quality, moisture content, ambient temperature and humidity.
*Product color or specification is subject to change without notice Packaging & Shipping

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
