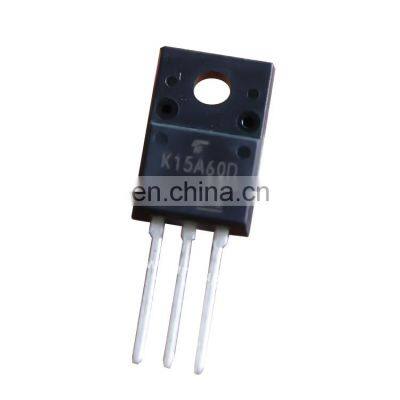

New & Original TK15A60D K15A60D Switching Voltage Regulator
Product Description
Product DescriptionWhy Choose Us
| Description | ||
| Application Scope | Switching Voltage Regulators | |
| Polarity | N-ch | |
| Generation | π-MOSⅦ | |
| Internal Connection | Single | |
| RoHS Compatible Product(s) (#) | Available | |
| Assembly bases | Malaysia | |
| Package Information | ||
| Toshiba Package Name | TO-220SIS | |
| Package Image | ||
| JEITA | SC-67 | |
| Pins | 3 | |
| Mounting | Through Hole | |
| Width×Length×Height (mm) | 10.0×15.0×4.5 | |
| Absolute Maximum Ratings | ||||||
| Characteristics | Symbol | Rating | Unit | |||
| Drain-Source voltage | VDSS | 600 | V | |||
| Gate-Source voltage | VGSS | +/-30 | V | |||
| Drain current | ID | 15 | A | |||
| Power Dissipation | PD | 50 | W | |||
| Electrical Characteristics | ||||||||
| Characteristics | Symbol | Condition | Value | Unit | ||||
| Gate threshold voltage (Max) | Vth | - | 4 | V | ||||
| Drain-Source on-resistance (Max) | RDS(ON) | |VGS|=10V | 370 | mΩ | ||||
| Input capacitance (Typ.) | Ciss | - | 2600 | pF | ||||
| Total gate charge (Typ.) | Qg | VGS=10V | 45 | nC | ||||
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
