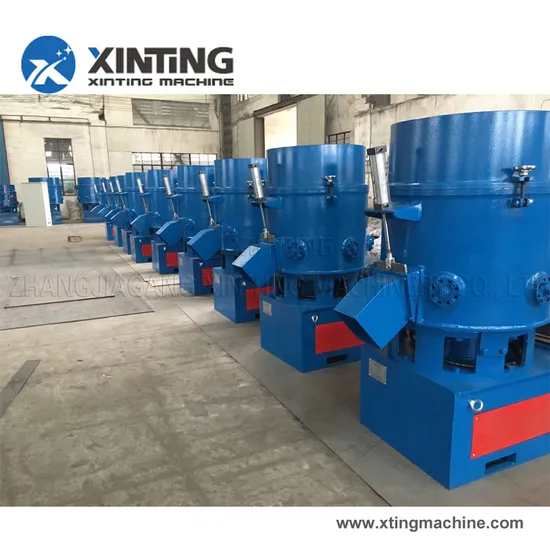

PP PE Woven Bag Agglomerator /Plastic Densifier for Plastic Recycling

PP PE Woven Bag Agglomerator /Plastic Densifier for Plastic Recycling

US$2,500.00-6,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DENSIFER100-800
Material Processed
Film
Plastic Type
PE
Screw
Multi-Screw
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Voltage
380V 50Hz or Customize
Material
PP/PE, PE,PP,Pet
Dimension(L*W*H)
2170*1510*2140
Rotary Blades
4 PCS
Stationary Blades Quantity(PCS)
8
Rotating Blades Speed
750r/Min
Discharge Method
Pneumatic
Capacity( Kg/H)
400~650
Tank Volume (Liter)
100-800
Weight
2800kg
Power
30kw-132kw
Brand Name
Xinting PE Film Agglomerator
Transport Package
Film Package or Woodcase Package
Specification
2170*1510*2140
Trademark
densifier xinting
Origin
Zhangjiagang China
HS Code
8477800000
Production Capacity
10 Sets Two Months

Packaging & Delivery

Package Size
1600.00cm * 200.00cm * 200.00cm
Package Gross Weight
18000.000kg

Product Description

PP PE woven bag agglomerator /plastic densifier for plastic recycling
Application & Features for plastic densifier
The aggregator is a kind of waste thermoplastic thin films, and wall thickness is less than 10mm of products can granulated immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.
Working principle
Putting the waste into machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear ,then the material along the pot body wall by the knife dish centrifugal force function ,at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of material itself and friction of pot wall and blades produce much friction heat under the high speed, making the materials temperature rises to the half-plastic condition and connects to small lump. Before the materials will block, advanced preparation quantitative water will all spray to the material. The cold water touch the hot materials will gasify and take out the surface heat soon , making the surface of the materials cool quickly and avoid blocking, then after crushing effect between rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.
The particles can be used for extrusion or injection mould machine directly. also can be further pelletized for some advanced requirements.
This machine is qualified with certificate ISO9001:2000.
Technical data
Model GHC1000 GHC800 GHC500 GHC300 GHC200 GHC100
Tank volume (Liter) 1000 800 500 300 200 100
Working volume (Liter) 750 600 375 200 150 75
Capacity( Kg/h) 600~800 400~650 350~500 200~350 150-250 100-150
Motor power (Kw) 132 110 90 75 55 37
Rotating blades speed (r/min) 700 750 750 900 800 800
Rotating blades quantity (pcs) 4 4 4 2 2 2
Stationary blades quantity(pcs) 8 8 8 8 6 6
Discharging model Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Water inlet 1" 1" 1" 1" 1" 1"
Machine dimension
L×W×H (mm)
2680×1815×2400 2170×1510×2140 2100×1510×2145 2100×1495×1945 1900×1160×1800 1900×650×1310
Machine weight ( Kg) 3500 2800 2500 2000 1800 1200
