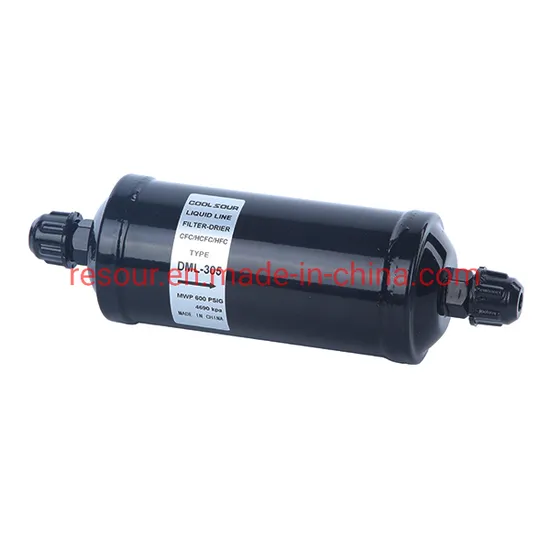

DC (M) L Liquid Line Filter Drier (Solid Core)

Product Description

DC(M)L Series Liquid Line Filter Drier (Solid Core)
1.Designed for protecting refrigeration and air conditioning system from moisture and acid.
2.DML driers with a 100% Molecular Sieve solid core.
3.DCL driers with a 80% Molecular Sieve with 20% activated alumina.
Feature
1.Corrosion resistant epoxy powder paint finish,Salty testing up to 400 hours;
2.Allow installation of any orientation in the direction shown by the arrow;
3.25 μm (0.001 In) Filter molecular sieve in ensuring the best filtering effect with minimal pressure drop;
4.Available in sizes from 3 to 75 cubic inches;
5.Thermally stable up to 120 °C (250°F).

Application
Type	Media					DCL	DML
Refrigerant	HFC(R134a,R404A,R07C,R410A etc.)					Yes	Yes
	HCFC(R22,R502 etc.)					Yes	Yes
Oil	Mineral or AB					Yes	Yes
	Pure POE or PAG					Yes	Yes
	POE or PAG with additives					No	Yes

Technical parameter
Model		Connection	Capacity (KW)			Dimension (Inch)
SAE	ODF	Inch	R134a	R404a R507	R22 R407c R410a	A	A1	A2	B		L		D1	D2
									SAE	ODF	SAE	ODF
DC(M)L-032	DC(M)L-032S	1/4	7	5	7	2.60	0.63	1.97		3.23	4.33	3.86	1.80	1.70
DC(M)L-033	DC(M)L-033S	3/8	17	13	19					3.36	4.84	4.09
DC(M)L-052	DC(M)L-052S	1/4	7	5	8	2.95	0.96	1.99	-	3.58	4.96	4.21	2.30	2.10
DC(M)L-053	DC(M)L-053S	3/8	18	14	19				-	3.70	5.20	4.45
DC(M)L-054		1/2	19	16	20					3.78	-	4.64
DC(M)L-082	DC(M)L-082S	1/4	7	5	8	3.98	1.99	1.99		4.61	5.71	5.24	2.30	2.10
DC(M)L-083	DC(M)L-083S	3/8	19	14	21					4.72	6.22	5.47
DC(M)L-084	DC(M)L-084S	1/2	26	20	29					4.80	6.54	5.63
DC(M)L-162	DC(M)L-162S	1/4	7	5	8	3.44	2.17	2.17		4.96	6.06	5.59	3.20	3.00
DC(M)L-163	DC(M)L-163S	3/8	22	16	24					5.08	6.57	5.83
DC(M)L-164	DC(M)L-164S	1/2	30	22	33				-	5.16	6.89	5.98
DC(M)L-165	DC(M)L-165S	5/8	43	33	47				-	5.28	7.24	6.22
DC(M)L-166	DC(M)L-166S	3/4	44	31	48					5.51	7.17	6.69
-	DC(M)L-167S	7/8	45	32	49					5.35	-	6.77
DC(M)L-303	DC(M)L-303S	3/8	21	15	23	7.32	-	-		8.07	9.57	8.82	3.20	3.00
DC(M)L-304	DC(M)L-304S	1/2	31	22	34					8.15	9.88	8.98
DC(M)L-305	DC(M)L-305S	5/8	45	33	49					8.27	10.20	9.21
DC(M)L-306	DC(M)L-306S	3/4	62	45	68					8.50	10.20	9.69
-	DC(M)L-307S	7/8	62	45	68					8.35	-	9.76
-	DC(M)L-309S	1-1/8	63	46	69					8.15	-	9.80
DC(M)L-413	-	3/8	31	22	34	7.36	-	-		-	9.61	-	3.70	3.50
DC(M)L-414	DC(M)L-414S	1/2	32	23	35					8.19	9.92	9.02
DC(M)L-415	DC(M)L-415S	5/8	53	37	58				-	8.31	10.30	9.25
-	DC(M)L-417S	7/8	91	65	100				-	8.39	-	9.80
-	DC(M)L-419S	1-1/8	92	66	101					8.19	-	9.84
-	DC(M)L-604S	1/2	44	32	48	13.30	-	-		14.10	-	14.90	3.20	3.00
-	DC(M)L-607S	7/8	75	54	82					14.30	-	14.70
-	DC(M)L-609S	1-1/8	87	64	95					14.10	-	14.80
-	DC(M)L-757S	7/8	82	60	90	13.30	-	-		14.30	-	15.80	3.70	3.00
-	DC(M)L-759S	1-1/8	94	68	102					14.10		15.80
