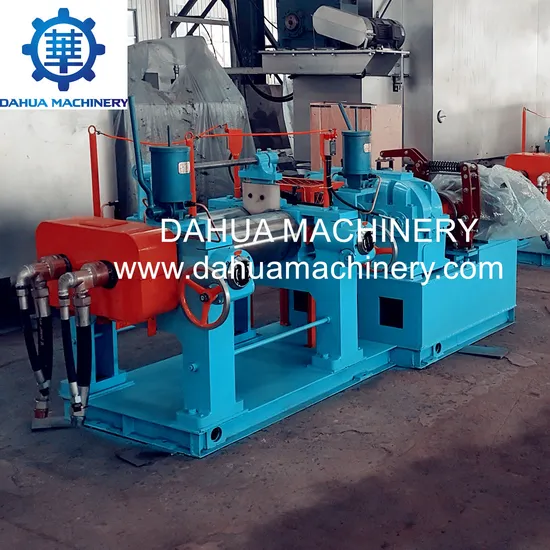

Xk-250 Rubber Mixing Mill Machine with Ce ISO

Product Description

36 MONTHS WARRANTY NEW Open Two Roll Rubber Mixing Mill with Oversea-Service
XK-250 Product Description
Usage:
This machine is mainly used in following cases for rubber porduction factory, natural rubber refining, raw rubber and compound ingredient mixing.
1. The mixing mill are equipped with stock blender which save labor and increase production efficiency...
2. Adopting Korea technology, it has reached domestic advanced level. Besides, with hydraulic-controlling roll guide, it can freely adjust the axial
separation of roll guide.
3. With chain drive, the main engine owns the characteristics of compact structure, high intensity, low noise and so on.
Technical parameters

Type		XK-150	XK-250	XK-300	XK-360	X(S)K-400	X(S)K-450	X(S)K-560
Working diameter of rolls (mm)		Ø150	Ø250	Ø300	Ø360	Ø400	Ø450	Ø560
Working length of rolls (mm)		320	620	750	900	1000	1200	1530
Working linear speed of front roll(m/min)		8	15.1	15.1	16.25	18.65	24.5	27.7
Max gap (mm)		10	10	10	10	15	15	15
Capacity per.batch(kg)		1-2	10-15	15-20	20-25	18-35	25-50	50-65
Driving motor power(kw)		7.5	18.5	22	30	37	55	95
Overall dimension (mm)	L	1080	3400	3580	3940	4250	5200	6120
	W	796	1350	1550	1780	1850	2380	2280
	H	1415	1500	1695	1740	1870	1770	2000
Weight (kg)		1100	3500	5205	5670	7600	13000	22000
Notes		Bearing	Nylon bush grease LUB Copper sleeve oil LUB					Nylon bush grease LUB

Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements.
