Double Shaft Drilling&Milling, Auto-Tapping Compound Machine

Product Description

Double Shaft Four Position Drilling& Tapping Compound Machine ZS4150× 2B
I. Introduction:
1. Application:
Double Shaft Drilling&milling, Auto-tapping Compound Machine ZS4150× 2B can be applied in components processing in large quantity. The electric system is of PLC programmable controller. The drilling and threading processing can be finishing once. The guide rail(guideway) quenches by super audio frequency. Slide moving use with buffer, low vibrate, and adopts pneumatic clamp, loading and unloading fastly.

maximum boring diameter	φ50mm copper
Maximum tapping diameter	M40mm(Copper)
Spindle travel Spindle speed (drilling)	120mm
Spindle motor	2.2kw-6 3 kW-4
Spindle speed	700-1110 RPM
spindle speed (tapping)	380-650 RPM
Appearance size	1000mm x 700mm x 1900mm
Net weight of machinery	850kg

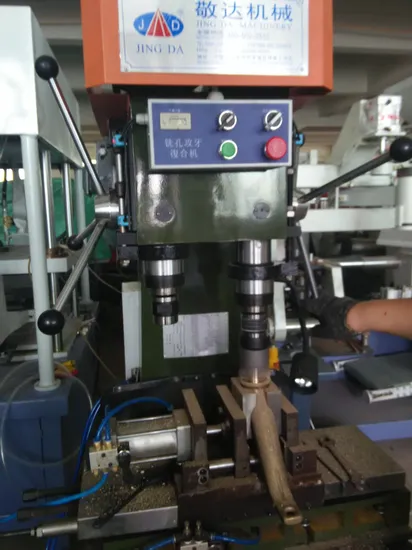

Pic. 1 Double Shaft Four Position Drilling& Tapping Compound Machine ZS4150× 2B
2. Main specifications and technical parameters:
ParameterModel
ZS4150* 2B
1. Diameter ()90mm
2. Taper hole of spindle ()MT 4
3. Travel of table ()240 mm
4. Travel of spindle (drilling/ tapping) ( /)140mm
5. Speed of spindle ()Left: 392rpm, 580rpm
Right: 600rpm, 1010rpm
6. Dimension (L*W*H) ()1390*110*1750mm
7. Weight ()1200kg
8. Pitch Time ()10± 2 seconds
