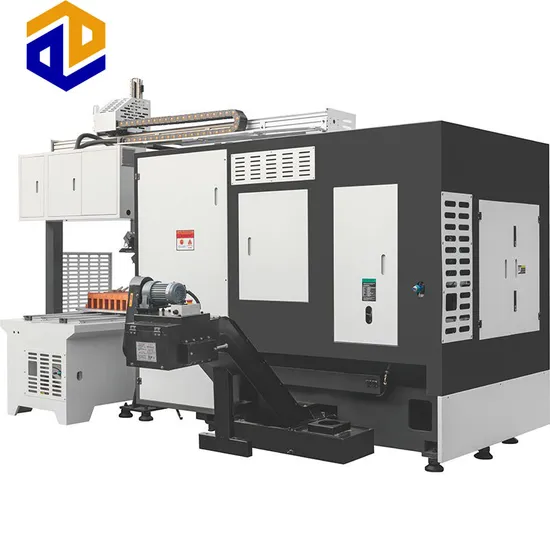

Dy-Wx12A High Speed Fully Servo 12-Axis Turret Horizontal CNC Machine

Product Description

Efficient and convenient 12-axis turret horizontal center machining
Product Description
Suitable for: Angle valve, ball valve, three-way valve.
Feature
1: This machine tool adopts numerical control program to simplify the operation interface. (CNC system)
2: The structure adopts HT300 integral casting process and three times aging treatment to ensure that the precision is not out of shape
3: Processing purposes: suitable for products and drawings provided by customers, or customized.
4: Action part: according to the requirements of the processing product layout.
5: Workbench operation mode :8 indexing (servo turntable), 1/8=1 second.
6: Fixture type: hydraulic synchronous clamp.
7: Equipment matching and scheduling machine.
8: Spreading tool function: standard CNC lathe function, pick teeth can be processed NPT thread, arc.
9: Using absolute coordinates, M3 bus.
10: Processing efficiency :6-9 seconds/piece.
Product Parameters

Project	Parameters	Project	Parameters
Control system	A6KBLV-SM	Feed motor (X\Y\Z)	130-11.5 - N/m
Spindle motor	5.5KW(50-4000rpm) servo	casting	HT250
Servo hydraulic tool tower	Tool holder: ER40 Maximum tool speed :4000rpm Number of knives: 12 Tool change speed :0.4s/45°0.8s/180 Locking method: oil pressure	oiling	Gear pump
Rail (xZ)	HGWV45 Heavy duty precision rail	Air source treatment	Jadek
Lead screw (xZ)	TBI4010	Workpiece clamping stroke	200mm
Fourth axis	Servo turntable diameter :170mm Maximum rotating diameter :310mm Locking method: hydraulic Servo motor :130 Segmentation accuracy: 20sec Repeatability :4sec Turntable center height: 158mm	Minimum closing height Chip cleaner X Maximum travel Y maximum travel Z maximum travel Y Maximum moving speed X/Z Maximum moving speed Repeated positioning accuracy: Gross machine weight Machine outline dimension Total machine power	50mm Caterpillar chip extractor 350mm 15000mm/min 15000mm/min + / - 0.005 mm 4500Kg 2650x1860x2350mm with chip removal machine width of 2970mm 16.5 Kw

Detailed Photos
https://haochenmachine.en.made-in-china.com/product/naApERJdmcWh/China-High-Speed-Fully-Servo-12-Axis-Turret-Horizontal-Center-Machining.html?pv_id=1if9lk0b45b0&faw_id=1if9lk2k6043
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
