Consult Us for a Surprise! ! ! Diesel Excavator New Chinese F40-35 Mini Small Excavator Tractor Wheel Best Backhoe Loader with Towable for Low Price

Product Description

Our engineering machinery products cover various commonly used equipment such as excavators, loaders, rollers, backhoe loaders, self loading concrete mixers, skid steer loaders, forklifts, etc., widely used in construction, road, bridge, mining and other engineering fields. We have established close cooperative relationships with multiple internationally renowned construction machinery manufacturers to ensure that the quality and performance of our products reach the international advanced level.
More products are available at: https://daojiguoji.en.made-in-china.com/

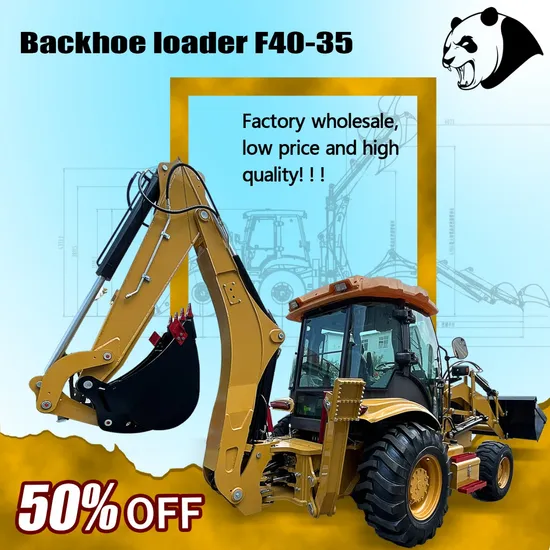

NEW F40-35 Backhoe Loader
Overall Operating Weight	7500KG
Transport Dimension
L*W*H mm	7600×2260×2890mm
Wheel base	2250mm
Min. Ground Clearance	300mm
Bucket Capacity	1.5m3
Breakout Force	38KN
Loading Lifting Capacity	2800KG
Bucket Dumping Height	2800mm
Bucket Dumping Distance	1062mm
Backhoe Capacity	0.3m3
Max. Digging Depth	4100mm
Swing Angle of backhoe	190o
Max. Pulling Force	39KN
Engine
Brand/Model	YUCHAI YCD4J22T-115
Type	In Line,Direct injection,Four-Stroke,Water Cooling
Rated Power	76KW
Steering System
Steering Angle	±36
Min. turning radius	6581mm
Pressure of the system	12Mpa
Axle
Brand	FEICHENG YUNYU
Main Transmission Type	Double Reduction
Final Reducer	Single Stage Final Reducer
Rated Loader of Axle	4/18.5t
Transmission System
Torque Converter
Model	YJ280
Type	Single-stage Three Elements
Cooling Method	Oil-cooling Pressure Circulation
Gearbox
Type	Fixed Shaft Power Transmission
Gears	Four Gears Ahead, Four Gears Astern
Max.Speed	30Km/h
Tyre
Model	(F)14-17.5
	(R)19.5L-24
Brake System
Service Brake	Air Over Oil Caliper Brake
	External Type
	Self-regulation
	Self-balance
Emergency Brake	Operation Power Implementing brake
	Manual Operation Power Terminating Brake
Hydraulic System
Pressure of Hydraulic System	22Mpa
Digging Power of Excavator Grab	46.5KN
Digging Power of Dipper	31KN
Packing Quantity(1*40HC)	2Units(Remove tires/excavator arms/buckets and pack with craft wheels)
Standard configuration: front shovel with bucket, rear shovel with bucket, luxury interior cab/fan/LED light/large reflection/window breaker/fire extinguisher/sliding window/skylight, heater, luxury adjustable swivel seat, adjustable instrument panel, LCD display, hydraulic pilot operation, Yuchai 76KW engine, 14-17.5 vacuum front tire, 19.5L-24 vacuum rear tire, special 280 integral dual high and low speed gearbox, front wheel Yunyu steering drive axle, four-wheel drive, A-shaped outrigger.

About Us
More Products
Loaders, skid loaders, backhoe loaders, telescopic forklifts, self-loading concrete mixer trucks and other construction machinery are all available at:
https://daojiguoji.en.made-in-china.com/
Our Advantages
Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course
