Jotun CNC Hydraulic Universal 3 Roller Plate Cone Rolling Machine

Product Description

Product Description

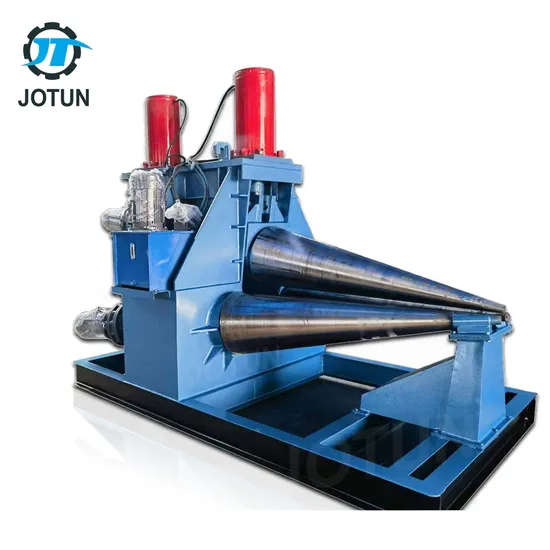

JT-MA Cone Rolling Machine
Cone rolling machine is mainly composed of tapered work rollers (one upper roller, two down rollers), frame (steel plate splicing), hydraulic moving system, power and transmission system, control system, etc. Three rollers are fully driven, three rollers are tapered, and the line speed is automatically matched, making it easier to roll tapered workpieces without slipping.
Function :rolling for conic shape

Model	JT-10*1500 mm
Max Rolling Thickness	10(SUS)mm
Max Rolling Width	1500mm
Motor Power	4*3kw
Hydraulic station motor power	5.5kw
Reducer	3BW
Rolling range(r--R--θ)	25-750-60°Mm
Machine Size	3200*2000*2500mm
Machine Weight	7.5Tons
Roller diameter	420mm
Roller material	42CrMo forging surface quenched
Oil cylinder material	45 # steel, heat treated HRC48-50
Conical barrels with a small blanking radius of R or more, a large radius of R or less, and a blanking angle of θ or more can be rolled.

Product Feactures
Calculate the rated load of the equipment based on the 60-degree cone barrel, maximum thickness, and maximum rolling width of the finished workpiece.
There are 3 working motors, all of which rotate synchronously and actively, and are selected according to 1.2 times the rated load.
Three cycloidal pinwheel reducers, selected according to 1.5 times the rated load.
The connection between the reducer and the shaft is installed with a shaft, the machined surface and coaxiality are precise, and the coupling is not hard-connected, so the reducer is not easily damaged.
Maximize the diameter of the shaft head and select the bearing according to 2.5 times the rated load.
Control the wireless remote control.
The hydraulic station is equipped with a two-link solenoid valve, an electromagnetic relief valve, and an axial piston pump.
The hydraulic cylinder should be selected based on twice the rated load at 25MPA.
Detailed Photos

Company Profile
Since the establishment of the company in 2013, Our company has provided high-quality and best-price metal polishing machines for countries around the world, which are suitable for food and beverage, pharmaceutical, chemical, water treatment, new energy, etc. industries.
China Jingteng Polishing can provide you with different metal surface polishing machines, tank polishing machines, dish head polishing machines, tube polishing machines, sheet polishing machines, metal deburring machines, CNC polishing machines, etc.
All machines provided by China Jingteng have the following great advantages,
1. We have our factory and a professional design team, we can design suitable high-quality machines according to each customer's requirements.
2. We have local technical support services in some countries and can provide local installation and commissioning services.
3. Our machines can help end customers greatly improve polishing efficiency,
Oversea Customer Cases

FAQ
Q:Why choose our machine?
A:We are professional metal surface finishing machine supplier,So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Do you have CE certification and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.Q: If we are interested in your machine, how do we choose?A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.Q: How about warranty?A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.Q: Do you have after sales support?A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
Q:How to get offer?
A:Provide your workpiece parameters:meterial,diameter,thickness,lenght,weight.
