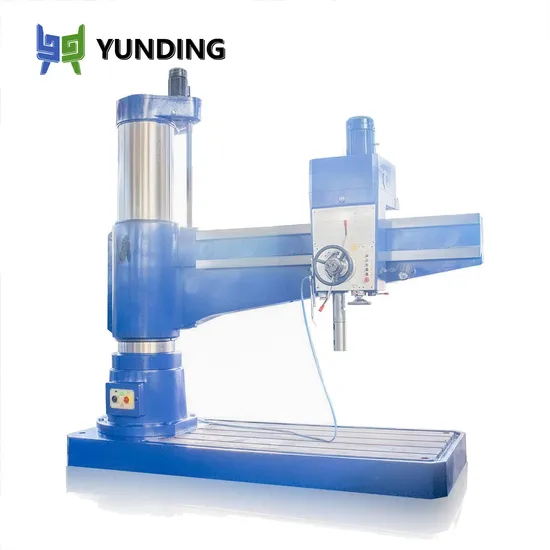

Hydraulic Heavy Duty Rocker Drill Z3080 High Accuracy Radial Drilling Machine for Metal

Hydraulic Heavy Duty Rocker Drill Z3080 High Accuracy Radial Drilling Machine for Metal

US$19,500.00-21,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3080
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Hydraulic
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.Drilling Capacity
80mm
Spindle Travel
400mm
Distance Spindle Axis to Column Surface
510-2000mm
Max. Distance Spindle Nose to Base
350-1570mm
Rocker Rotary Angle
360°
Spindle Speeds Range
0.04-3.20rpm
Main Motor Power(Kw)
7.5kw
Weight
7000kg
Transport Package
Plywood Case
Specification
2980*1250*3300mm
Trademark
yunding
Origin
China
HS Code
8459290000
Production Capacity
2000

Packaging & Delivery

Package Size
290.00cm * 125.00cm * 330.00cm
Package Gross Weight
7000.000kg

Product Description

Product Description
Hydraulic Heavy Duty Rocker Drill Z3080 High Accuracy Radial Drilling Machine for Metal
we are the most professional in making radial drilling machine
Product Parameters
Features:With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etcStandard accessories:Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield
Main technical parameters specifications Units Z3080*20A Z3080*25A
Max. drilling diameter mm 80 80
Distance from spindle nose to table surface mm 350-1570 350-1570
Distance between spindle axis and column surface mm 510-2000 480-2500
Spindle travel mm 400 400
Spindle taper MT 6 6
Spindle speeds range (r.p.m) 16-1600 16-1600
Spindle speed step 16 16
Spindle feeding range (r.p.m) 0.04-3.20 0.04-3.20
Spindle feeding step 16 16
Rocker rotary angle +/-90° +/-90°
Main motor power kw 7.5 7.5
Movement motor power kw 1.5 1.5
N/W kg 7000 9500
Overall dimensions(L*W*H) mm 2980*1250*3300 3500*1450*3300

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
