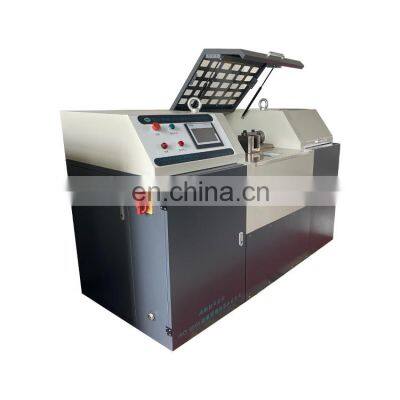

GW40 Bending and Straightening Steel Reinforcing Bars

Product Description

Product Description
GW40 Automatic Steel Bar Positive Direction Bending Test MachineProduct Description 1. GW40 Automatic Rebar Bending Testing Machine for Steel Bars is mainly used in metallurgical construction quality inspection department, as well as in raw materials and weld joint bending performance testing of steel bar.2. It is used in steel enterprises, scientific research institutes, quality inspection, construction engineering, railway, transportation, water transportation and colleges and universities for material bending performance testing and common equipment of research. 3. This equipment is used for the positive and negative bending tests of seismic steel bars such as the national standard and the British standard. Product Features1. Hydraulic station: The hydraulic station is mainly composed of fuel tank, oil pump and valve. The main hydraulic components are all domestic famous brands, which fully guarantee the reliability and stability of the hydraulic system.2. Rack: The frame part of the frame is welded by angle steel, channel steel and other profiles. The structure is reasonable and conforms to the operator's habits. The panel and the like are made of sheet metal structure, which is convenient to disassemble and assemble, and the surface is sprayed and processed, and the appearance is neat and beautiful. 3. Protective cover: This part is a very important safety protection measure for the equipment to prevent the steel from flying out during the test and injuring the operator. The part ismainly formed by sheet metal processing, and is hinged to the main frame for easy opening and closing. The observation hole is opened on the sheet metal, and the operator can clearly observe the progress of the test. 4. Bending core and bending core seat: The bending core seat is mounted on the piston rod of the oil cylinder, and the bending core is fixed on the curved core seat. The curved core is made of high-strength material and after heat treatment, it is durable and not easily damaged. 5. Hydraulic cylinder and control valve: The hydraulic cylinder is specially made, small in size and large in output. It provides sufficient force for bending steel bars, reliability is guaranteed, and operation is convenient.6. Electrical control system: The main electrical components are produced by well- known domestic enterprises, which ensures the reliability and stability of the equipment. 7. After the angle is set, the experiment is completed in one. touch operation (no need to adjust the sample for reverse bending after the positive bend). 8. The program is continuously bent to the specified angle to stop (do not need to manually hold the operation mode). 9. The equipment is equipped with angle measuring and control devices to ensure that the test meets the requirements of national standard and British standard.ParametersProduct nameGW40 Automatic Rebar Bending Testing MachineDrive modeHydraulic driveMaximum bending force500KNSample diameter rangeΦ6-40mmPositive bending angle180 degrees; can also be set freelyReverse bending angle90 degrees+20 degrees;can also be set freelyAngle tolerance±0.5°Support span100mm-420mmMaster cylinder working stroke300mmSecondary cylinder working stroke250mmCore diameter specificationsAccording to actual needs(see the bending core specification configuration table for detailsPower4KW, 380V, 50Hz, three-phase+neutralWeight2200kgBending speedMeet the standard no more than 20°/sConducted in batch(serving with 28 or less, serving with 28 or more, serving with 32~40, serving with 2, serving with 12)Set the sample specifications, PLC control automatically adjusts the span, and automatically calculates the indenter diameterThe bending machine meets the long-term stable working conditionCompany ProfileCangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.All our products are made in China. Excellent quality with competitive price.Packing & Delivery · Tianjin port or Qingdao Port deliver by sea and also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3: How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiableRelated Products
