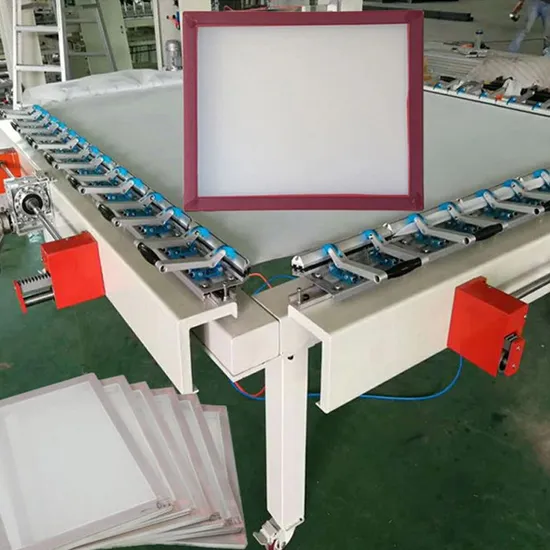

Easy Install Manual Silk Screen Stretching Machine/Mesh Stretcher for T-Shirt Printing

Product Description

Product Code	008008
Product Name	M&K-1215 Dw Double Clamp Worm Screen Stretching Machine
HS code	8442302900
Max working area	1200x1500mm
Maximum tension	45N
Working air pressure	0.40-7MPa
Net weight	230KG
Gross weight	250KG
Packing size	170*60*60cm
Packing volume	0.61m³
Packing material	Export wooden case

1.the beam with 1200x80mm special square tube production,tension up to 45 Newton,
long-term high tension pull the net beam is not deformed. Built-in track skateboard,
four sides of the beam can be movable type,flexible and convenient to shrink,
according to the size of the network frame to adjust the net area,effectively save the yarn.
2.the use of material system pull net chuck,chuck base plate with 45thick steel plate
bending welded together,can withstand long-term high tension, chuck with the import of
rubber strips,do not fall of,do not hurt the mesh, not Retreat.
3.the use of Taiwan imported turbine rod gear box drive,the use of gears,
racks and linear bearings do travel guide,changing the traditional chain drive,
this design is more evenly,higher precision,pull the net more light.
4.with four synchronous top mesh cylinder,so that when the network to ensure quality.
About Macrokun
Macrokun which responsibly manufacturer and exporter of Monofilament Polyester Screen
Pringting mesh in China.
Established in 2011.You will soon realize that MACROKUN is a reliable and friendly supplier
of major items to screen printers,Such as *Polyester screen printing mesh, *Screen printing squeegee,
*Aluminum screen printing frames,
*Printing Materials & Accessories
*Stainless Steel Pringting mesh
*Screen printing machine MACROKUN's price are significantly lower compared to other suppliers in
the market base on the same quality.
We welcome and appreciate your comments on our service and product,which we need in order to
enhance the quality of our goods and service.
Samples orders usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS and soon)
Small quantity orders usually within 3-7 days shipped by air or by sea.
Large quantity orders usually within 7-15 days shipped by sea.
