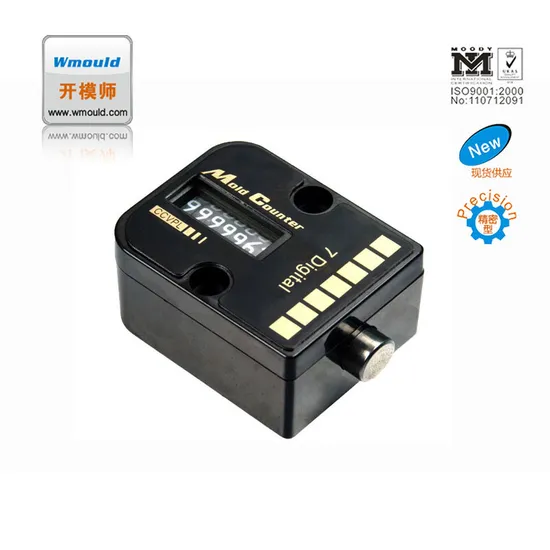

7 Digital Mould Cycle Counter Mold Stainless Steel Parts JIS DIN AISI Plastic Injection Mould Parts Mold Components Square Mold Counter

Product Description

Basic Information

Manufacture	Shenzhen Datong Precision Metal Co., Ltd.
Mould parts for Mold type	Plastic injection moulds, Die-casting moulds, Punch moulds, Precision machining, Stamping molds, etc.
Industry	Automotive, Medical, Cosmetics, Mobile Phone, Equipment manufacturing,
Mould parts size	According to customer requirements
Material	SKD61, SKD11, SKH-51, SUJ2, S45C, 1.2343, 1.2344, 1.2767, etc
Standard	DIN, AISI, JIS, such as DME, HASCO, Misumi, Progressive, etc.
Tolerance	As per standard or drawing
Surface	Nitriding, Titanium coating, Blacking, DLC coating, etc.
Delivery	3-30 days after payment according to order quantity
Shipment	By air, By sea
Package	in bubble bag, plastic bag, carton, wooden case, or Customized
QC System	100% inspection before shipment
Inspection Equipment	HEXAGON, ZEISS
Equipment	Wire Cutting Machine: Switzerland Agie Charmilles, etc.
	EDM: China OUWEN, Taiwan Miki, etc.
	Plain Grinding Machine: Taiwan DAWN, Japan OKAMOTO, etc.
	Circular Grinding Machine: China, Taiwan Tengchang etc.
	Vertical Milling: China Today CNC, etc.
	Lather Machine: Taiwan, China Today CNC, German DMG, etc.
	CNC Machine: China, Taiwan, Japan Mori Seiki, German DMG MORI

Features
1.The counters are installed in the plates in the case of having enough installation location.
2.If the temperature is too high,use the mold counter with insulating plate and install outside the mold. ( it can not influence mold inner structure after blocking) .
3.Max.working temperature 120ºC. Product series
Guide pins & guide bushes
guide pin ; guide bush ; angle guide pin ; steel ball guide bush
Gate series
sprue bush ; locating ring ; cashew gate insert ; runner lock pin ; runner lock pin bush
Date stamps & air valves
date insert ; air valve; air spigot
Latch lock series
parting lock screws ; tension link ; latch lock
Slide retainers series
slide retainer series ; slide retainer
Ejector pins and sleeves
ejector pins ; ejector pins with groove ; stepped ejector pins ; flat ejector pins ; ejector sleeves ; middle shoulder stepped ejector pins ; core pins ; slide pins
Ejector series
two-stage ejector ; ejector institutions ; accelerated ejector ; round latch locks ; core pin ; slide units ; wear plate; slide core units ; sprung core ; collapsible core
Locating series
square interlock; round locating units
Guide strips & Wear plates
guide strips ; guide rail; wear plate; inclined wedge active block; guide strips
Springs series
springs; nitrogen springs; mounting bracket
Mold accessories
mold counter; limit switch; tool safety devices; shoulder bolt; stop pin; support pillar; secreating washer
Non-standard customerized precision parts
Base of moulds
Company Introdution
Wmould(DATONG PRECISION) is one of top mould components manufacturer in China, Established in 2002 at Shenzhen, China, with 6 manufacturing plants over 500 employees.
Wmould provides global JIS,DIN,AISI and so on standard mould parts, non-standard customization parts and one-stop solutions for global customers.
With more than 17 years of experience, 6 manufacturing plants over 500 employees ,a strong professional team in global market and a deep insight into customer's requirements, all this guarantee us high competition in the market and ensure the best service to our customers.
Get more than 30 patents
Earned more than 3000 global high quality manufacturers trust
Set up point to point localization services in more than 30 countries
Have about 30 branch companies in China, with customers locating over 70 cities
Our stock inventory over 1000 types and can deliver within 24 hours.
