Woodworking Machinery Automatic Wood 4 Sides Planer

Product Description

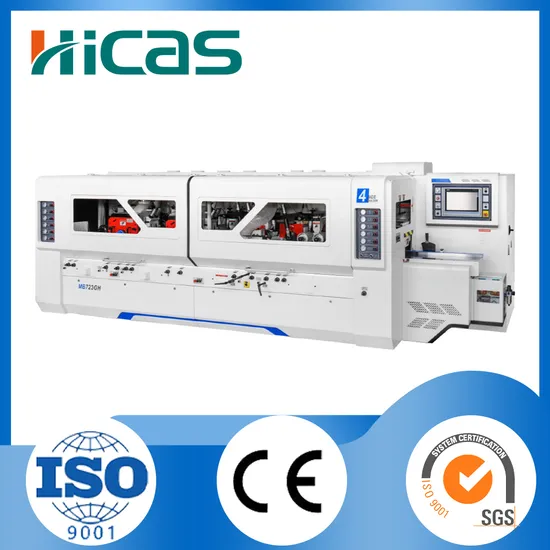

HICAS New High Speed 7 Spindles Automatic Four Side Moulder for Floor Product Description
Professional solution: four-side planing,fit for finger joint,wood-line factory,high efficiency and mass production.50mm cutter spindles.the second top and bottom,two vertical cutters are all equipped with automatic sharpening mechanisms.And the rear upper and bottom horizontal cutter spindles are equipped with hydraulic out-support bearing devices.There are 2 sets of 180 dia.feed wheels in front,under them is the alloy steel worktable,high speed feeding and impact wear resistance. Product Parameters

Model	MB723GH	MB623GH
Working width	20-230mm	20-230mm
Working thickness	10-160mm	10-160mm
Min. Working length	720/280mm	280/720mm
Movable working table max. Lifting limit	10mm	/
Movable fence max. Move amount	10mm	/
Feeding speed	10-60m/min	10-60m/min
spindle diameter	50mm	50mm
Bottom spindle speed	7000r/min	7000r/min
Spindle quantity	7pc	7pc
Vertical spindle move amount	80mm	80mm
Horizontal spindle move amount	40mm	40mm
1st Bottom cutter diameter	140mm 165mm score cutter	140-180mm
2nd Bottom cutter diameter	140-250mm	140-250mm
3rd Bottom cutter diameter	140-250mm	/
Left cutter diameter	140-250mm	140-250mm
Right cutter diameter	140-250mm	140-250mm
1st Upper cutter diameter	140-250mm	140-250mm
2nd Upper cutter diameter	140-250mm	140-250mm
1st Bottom spindle power	11kw	7.5kw
2nd Bottom spindle power	15kw	11kw
3rd Bottom spindle power	15kw	/
Left spindle power	11kw	7.5kw
Right spindle power	11kw	7.5kw
1st Upper spindle power	15kw	11kw
2nd Upper spindle power	15kw	11kw
Feeding motor power	11kw	7.5kw
Beam lifting motor power	0.75kw	0.75kw
Upper spindle lifting motor power	0.75kw	0.75kw
Left spindle forwarding power	0.37kw	0.37kw
Total power	105.874kw	65kw
Dust collection port	180mm*7pc	180mm*6pc
Pressing roller size	140*35*50mm	140*35*50mm
Machine size(mm)	5660*2100*1960	5660*2100*1900
Machine weight	8800kg	8300kg

Detailed Photos

1. ENTIRE CAST IRON	2. PROFESSIONAL ELECTRICAL APPLIANCES
Extra heavy one-piece, cast iron or steel weldment machine frame is specially heat treated for maximum stability and rigidity by standard configuration.	Siemens and schneider electrical products and appliances insure the whole machine run well with a stable performance.

3.AIRTAC CYLINDER	4.SAFETY ENCLOSURE
Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect.	The full heavy gauge steel sound insulated safety enclosure serves as a chip guard and helps to reduce noise and has strobe free lighting.

5. HIGH PRECISION SPINDLES	6. HEAVY DUTY GEARBOXES
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.	The feed rollers are driven through a combination of Extra heavy universal shafts and gearboxes, ensuring no loss of power transmission. A smooth feeding effect is assured.

7.OUTSTANDING FEEDING PERFORMANCE	8. HARD-CHROMED FEED TABLE
There are more top and bottom powered rollers than in most competitor's models, and this is an important reason for outstanding feeding performance.	The entire cast iron-chromed. In-feed table is normalization heat treated for maximum stability. In-feed table fence&adjustment is quickly accomplished by means of a quick-setting levers.

1. According to the large-scale, high-efficiency production of solid wood processing customers, we developed a heavy-duty, high-speed four-sided woodworking moulder machine.
2. The product is used for high-speed feeding and planning of wood products and uses advanced online straight-edge sharpening technology to automatically sharpen the upper and lower cutters and the left and right side cutters.
3. The maximum processing width is 230mm, the maximum feeding speed is 60m/min, and the processing board surface is of good quality and high efficiency.
4. It is widely used in large-scale finger-joint boards and large-scale solid wood processing plants for high-efficiency and mass production.
5. It is an ideal equipment for large-scale solid wood furniture factories and large finger-joint panel factories to reduce production personnel and use them to ensure safety and high efficiency.
Final Product
Company Profile
1. 20+ years experience in chinese woodworking machinery market.
2. 14 years exportation experience, have customers in more than 200 countries.
3.Engineer team with 20+ years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer & feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 200 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
