Automatic Cereal Bar Energy Bar Peanut Bar Making Machine Protein Bar Production Line

Product Description

Product Description

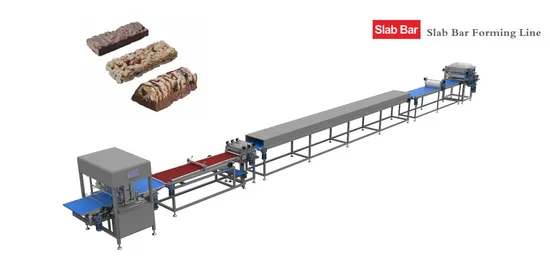

Automatic Cereal Bar, Muesli Bar, protein bar, Snicker Bar Production line

Forming Rollers units(for cereal bar, muesli bar, protein bar)
Product Parameters

Product description	Forming rollers units for nougat
Roller Diameters*Width	Infeed Roller:φ500*Width:540mm press roller:φ280*Width:540mm
Output mass width	540mm
Product thickness adjusting scope for single layer	5mm-40mm
Roller Materials	polytef or PE
Roller speed	3-6M/Min
Motor power	370W
Motor brand	ABB
Frequency converter	Siemens
Complete dimension	800*1300*1500mm
Complete Weight	300kg

Installation Instructions
Cooling Tunnel

Width of conveyor belt	600mm
Effective Length	18000mm
Machine Structure	304 stainless steel
Cooling Type	Water or Wind Cooling
Belt Speed	2-3.5M/Minutes
Main Feature	Cooling tunnel has the temperature sensor, temperature can be controlled by temperature controller.
	There are pneumatic rectifying belt devices in front and back rack. feeding part is with check rails avoiding products falling down
Main Electrical Parts	customized
Motor	ABB
Machine Structure	Stainless steel 304

Slitting Units

Model	BG-S800
Machine Materials	304 SS
Total Power	2KW
Mass max width before spreading	540mm
Slitting Width	According to requirement
Knife materials	304 SS
Machine Dimension	3400*1200*1600mm
Motor brand	ABB
Motor Quantity	3pcs
Frequency Converter	3pcs
Other Electrical parts	customized

Transversal Cutter

Model	BG-T800
Single Knife width	690mm
Cutting width	690mm
Machine materials	SS 304
Longitudinal Knives coating	Dupont
Cutting Length	20-200mm
Cutting speed	MAX 100times/min
Servo Motor Brand	Panasonic
General motor	Siemens or ABB
Electrical parts	customized
Belt Materials	PU
Power	Two servo motors: one is 1kw,another is 5kw
Transversal cutting machine	2000*1200*2000mm

FAQ
Machine installation we have the chinese technician to visit abroad for machine installation.
During the pandemic, we will take a complete installation video before machine delivery.
All the machine running will be tested and machine operation will be taken in the video. when client receives the machine, we will provide the online support to u. Why Choose Us
Our boss is the engineer, Once there is good structure, we will upgrades the technology constantly. We have the 30000m2 production area, professional technical team. We provide the rapid technology support, after-sales service. U can trust us.
Company Profile

Taizhou Hulk Food Machinery is the originated food confectionary machine manufacturer, concentrating on confectionery and chocolate bar packing machine, slab bar line, bar moulding machine, bar extruder and confectionery kitchen, . Basing on the principal of technology changing life, Taizhou Hulk Food Machinery constantly upgrade the technology and enhance the quality to meet more strict quality requirement. The technology research team is the guide and assurance for the company development.Hulk Food machinery insist on creating win-win situation for client, bring convenience and save the cost.
