Nai Production Line

Product Description

Nai Production Line
1. Machine's Introduce
Nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics. It has wide uses, simple operation, and reliable working condition. The raw material can be waste scrap or new wire rod. The nail point and the nail head can be formed at one time with a high efficiency.
2. Machine's Feature
1. This nail making machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics. 2. Especially it can make excellent quality YouMao nail and other special-shaped nail, which are suitable for high-speed studs for welding machine and nail gun.
3. Machine's Parameter

Model	SCZDJ -1C	SCZDJ -2C	SCZDJ -3C	SCZDJ -4C	SCZDJ -5.5C	SCZDJ -6.5C
Wire diameter of nails(mm)	0.9-1.6	1.2-2.8	1.8-3.4	2.8-4.5	3.7-5.5	4.6-6.5
Nail length(MM)	9--25	16-50	30-75	50-100	80-150	100-200
Capacity( Pieces/min)	450	350	320	280	200	160
Power(KW)	1.5	2.2	3	4	5.5	6.5
Voltage	380V	380V	380V	380V	380V	380V
	50HZ	50HZ	50HZ	50HZ	50HZ	50HZ
Weight (kg)	800	1200	1400	2000	2500	5000
Size (m)	1.4*1.0*1.2	1.6*1.2*1.3	1.8*1.2*1.4	2.1*1.5*1.5	2.3*1.5*1.6	3.2*2.2*2.2

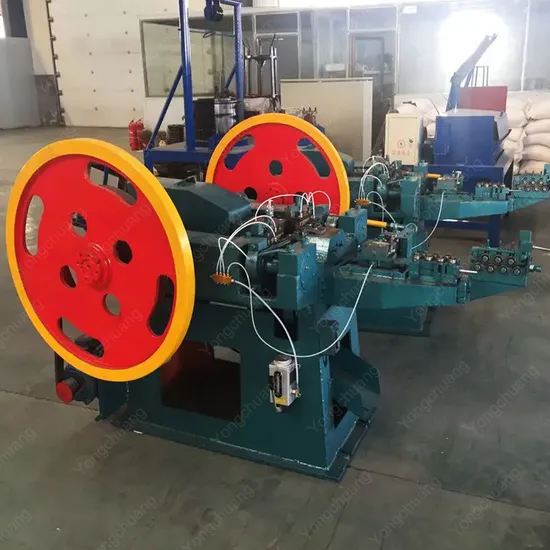

4. Machine's Picture
