Road Construction, Mining Hammer Crusher Equipment

Product Description

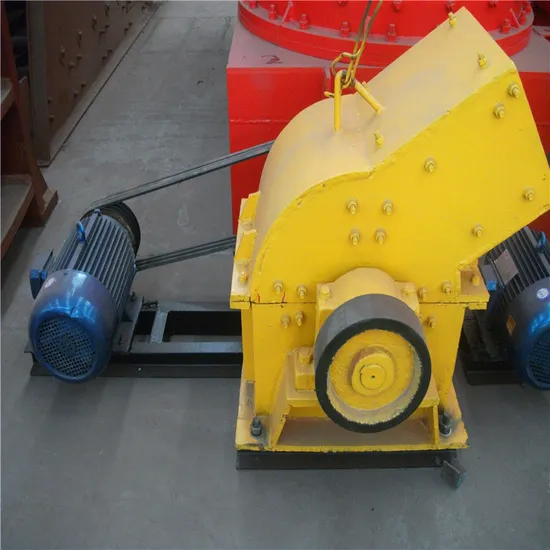

Road construction, mining hammer crusher equipment

Application and introduction of hammer crusher:
This series of hammer crushers is suitable for crushing various materials of brittleness such as coal, gangue, coke, slay, shale and loose lime stone etc. Whose compressive resistance does not exceed 100Mpa and the surface moisture content should not be greater than 8%.
Hammer crusher crushes materials by high-speed rotation of the hammer and impacting surface of materials, it has characteristics of a simple structure, large crushing ratio and high-efficiency production, etc,and can be used for dry and wet forms of crushing.Hammer crusher is used for crushing materials that is medium-hardness and weakly abrasive. The compressive strength of the material does not exceed 100 Mpa,its water content is less than 15%.Materials are coal, salt, chalk, plaster stone, alumstone, brick, tile, limestone etc. In addition,the hammer crusher is not only used in crushing production line and sand production line ,but also can substitute cone crusher in mineral production line.

Working Principle of stone hammer crusher:
The main wroking part of hammer crusher is rotor with hammer, the rotors consist of main shaft, disk, pin shaft and hammers.The motor drives the rotor to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by high-speed hammer. There is a screening palte under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until they reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirements.
Technical parameters of hammer crusher:

Type	Model	Feed size (mm)	Discharge Size(mm)	Capacity (m3/h)	Motor		Weight(t)	Overall Size ( L*W×*H )(mm)
					Number of Poles	Power(kw)
Hammer Crusher	PC400×300	≤200	≤10	5-10	4	11	0.8	900×670×860
	PC600×400	≤250	≤15	10-22	4	22	1.5	1200×1050×1200
	PC800×600	≤250	≤15	18-40	4	55	3.8	1310×1180×1310
	PC1000×800	≤350	≤15	25-50	4	75	4.9	1600×1390×1575
	PC1000×1000	≤300	≤19	30-55	6	132	8	1800×1590×1775
	PC1250×1250	≤350	≤19	35-65	6	180	14	2060×1600×1890
	PC1400×1400	≤350	≤25	50-100	6	280	32	2365×1870×2220
	PC1600×1600	≤350	≤35	100-150	8	480	37.5	3050×2850×2800

About our company:
Henan Yuhui Mining Machinery Co, Ltd. is located in Zhengzhou city in central plains, which adjoins to ancient millennium Shaolin Temple (Kung fu Origin) to the south, and Yellow River to the north. With Kailuo highway and Longhai railway, it owns convenient transportation and pleasant scenery.
Established in the 1970s, Henan Yuhui Mining Machinery Co.,Ltd. has developed into a famous manufacturer through 20 years struggling and progressing, specialized in producing mineral dressing equipment, compound fertilizer equipment, cement equipment, as well as sand making equipment.
YuHui provides a connected sequence service with designing process flow, on-site civil engineering guidance, installing and debugging the equipment, training technical and operating people for clients. The company guarantees repair, replacement and refund and is warrantable to the complete machine for one year. It supplies accessories for a long period. Welcome inquiries and purchase from both new and old customers as well as worldwide friends.
