New Design Pgr Patellar Groove Replacement Implants and Instruments Set for Dogs

Product Description

The PGR device is a unique solution to address patellar luxation, a condition in which the kneecap dislocates from its normal position in the patellar groove. This is the first and only device on the market to restore a functional patellar groove.
Patellofemoral degenerative disease is a common, often overlooked consequence of some of the most common canine knee disorders, such as patellar luxation or cruciate ligament degeneration and rupture. Surgical treatment of patellar luxation, whether by transposition of the tibial tubercle or by corrective osteotomy of the femur and/or tibia and deepening of the patellar groove by one of several methods, is intended to restore stability to the joint.
PGR implants offer:
1: The patella is immediately stabilized in the smooth artificial groove to prevent dislocation
2: Two-component design consisting of base plate and artificial groove for easy and secure fixation
3: The smooth amorphous diamond-like carbon (ADLC) coating guarantees low friction, with a very low coefficient of friction (m=0.05 on steel), offering the possibility to keep heat generation below the thermal necrosis threshold.
4: Rapid ingrowth of placode bone facilitates surface treatment
5: Over 10 different sizes to ensure an ideal fit for every dog breedProduct Parameters

Product Name	Size No	Specification
Trial Prosthesis	1#	11.2x6.3x4.8mm
	1.5#	12.7x7.3x5.2mm
	2#	14.3x8.1x5.6mm
	2.5#	16.1x9.2x6.3mm
	3#	17.9x10.2*7mm
	4#	21.1x12.1x8mm
	5#	24.5x14.1x9.1mm
	6#	27.6x16x10mm
	7#	31.7x18.5x11.1mm
	8#	36x20.9x13.4mm
	9#	40.1x23.3x13.9mm
	10#	44.3x25.8x15.8mm
Product Name	Size No	Specification
Groove Prosthesis	1#	11.2x6.3x4.8mm
	1.5#	12.7x7.3x5.2mm
	2#	14.3x8.1x5.6mm
	2.5#	16.1x9.2x6.3mm
	3#	17.9x10.2*7mm
	4#	21.1x12.1x8mm
	6#	27.6x16x10mm
	7#	31.7x18.5x11.1mm
	8#	36x20.9x13.4mm
	9#	40.1x23.3x13.9mm
	10#	44.3x25.8x15.8mm
Product Name	Size No	Specification
Substrate	1#	11.2x6.3x4.8mm
	1.5#	12.7x7.3x1.1mm
	2#	14.3x8.1x1.2mm
	2.5#	16.1x9.2x1.2mm
	3#	17.9x10.2*1.4mm
	4#	21.1x12.1x1.4mm
	5#	24.5x14.1x1.4mm
	6#	27.6x16x10mm
	7#	31.7x18.5x1.4mm
	8#	36x20.9x1.7mm
	9#	40.1x23.3x1.7mm
	10#	44.3x25.8x1.7mm
Product Name	S/No	Specification
Instruments	1	φ1.1mm Compression Drill Sleeve
	2	φ1.8mm Compression Drill Sleeve
	3	AO Quick Connection Drill φ1.1mmx85mm
	4	AO Quick Connection Drill φ1.8mmx100mm
	5	AO Quick Connection Screwdriver, T6
	6	AO Quick Connection Screwdriver, T10
	7	Depth gauge 30cm
	8	AO Quick Release Handle
	9	Screw Holder

Product Name	S/No	Specification	Qty
1.5mm Cortical Screw	1	1.5*6mm	4pcs
	2	1.5*7mm	4pcs
	3	1.5*8mm	4pcs
	4	1.5*10mm	4pcs
	5	1.5*12mm	4pcs
	6	1.5*14mm	4pcs
	7	1.5*16mm	4pcs
	8	1.5*18mm	4pcs
	9	1.5*20mm	4pcs
	10	1.5*22mm	4pcs
Product Name	S/No	Specification	Qty
2.4mm Cortical Screw	1	2.4*10mm	4pcs
	2	2.4*12mm	4pcs
	3	2.4*14mm	4pcs
	4	2.4*16mm	4pcs
	5	2.4*18mm	4pcs
	6	2.4*20mm	4pcs
	7	2.4*22mm	4pcs
	8	2.4*24mm	4pcs
	9	2.4*26mm	4pcs

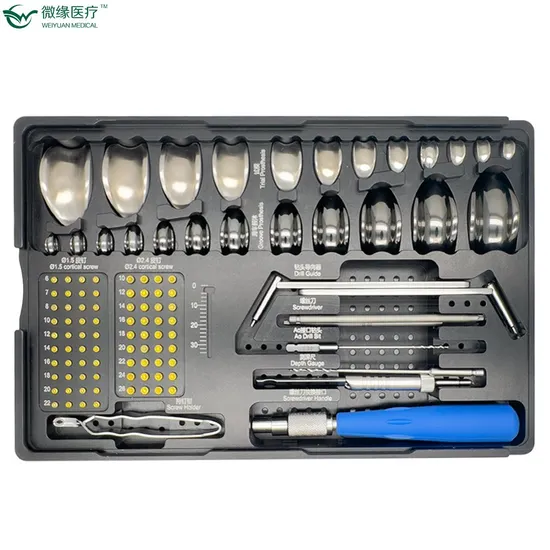

Detailed Photos
