10-1000kw Open Type Silent Type Yuchai Weichai Natural Gas Generator

Product Description

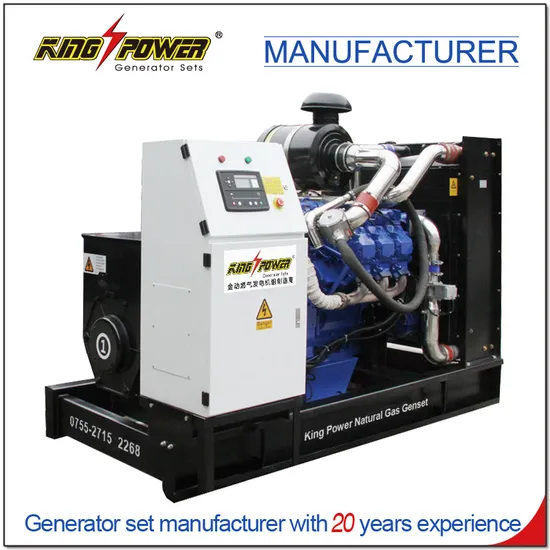

150kw natural gas generator set OPEN TYPE
King Power, established in 1994, after more than 20 years' development, has turned into a top level in diesel and gas generator manufacturer in China. Till now, King Power has achieved more than 29 patents. It has been authorized as the high-tech enterprise with 100 million RMB registered fond and more than 80000 square meters factory area. King Powr provides solutions to gas generator, biogas generator, coal-bed gas generator, biomass generator, the CHP system, etc. And committed to become a pioneer in gas and diesel power industry. We are authorized as the sole OEM factory of MWM in 2014.
Basic Info:

Genset model.: King Power/KPD188NG	Installation Method: Fixed
Fuel type: Natural Gas	Cooling Method: Water Cooling
Conditions of use: Land use	Usage: Common/standby units
Excitation Mode: AC Rotating Exciter	Excitation Mode: AC Rotating Exciter
Output Type: AC Three Phase	Stroke: Four Stroke
Trademark: King Power	Out-put Power(KW/KVA): 150/188
Origin: Shenzhen, China	Dimension(MM): 2600*1080*1450
Sound Level(DB): 60-105	Gross weight(KGS): 2100
Speed(RPM): 1500/1800	Engine brand&Model: King Power/KP6TAA540C-NG2
HS code: 8502200000	Frequency(Hz): 50/60
Advantage: Anti-vibration, Fuel-saving		Alternator brand: Robot/Stamford/Marathon/Leroy-somer
Optional Parts: CCHP system, Parallel System, sound-proof canopy, water-proof canopy, wheels, ATS,VTS
Standard Accessory: Exhaust Silencer, Flexible Pipe, Battery Cables, Battery, Air breaker
Environment: Work in Any Kinds of Harsh Climate
Warranty Period: 1 Year or 1000 Hours from the genset's delivery from the seller, subject to whichever comes first.

Package & Payment & Delivery Date
Package: PEE/ Ply-wood packing.
Payment term: 30% T/T as deposit, 70% balance shall be paid before delivery. Or 100% irrevocable L/C at sight.
Price term: FOB, CFR, CIF, EXW
Delivery time: 20-35 working days after getting the deposit.
Genset features
1.Gas saving.
2. High price performance ratio
3. 28-33% electricity efficiency.
4. Built-in damper for anti-vibration.
5. Supply of all the necessary spare parts.
6. Intelligent and reliable ignition and speed control systems.
7. Full range protection function and alarm shutdown feature.
8. Engine and alternator shall be mounted on a same frame steel skid
Alternator Feature
1. Customer-made low or medial or high voltage.
2. IP21-23) enclosure is standard for all industrial alternators.
3. The insulation system is Class H.
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adapters and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents.
7. AVR auto voltage regulator, auto exciter, auto adjustment.
8. Brush-less, 4 poles, rotation magnet.
Standard Accessory
Ignition & speed control system, Steel base frame, 3 meters smoke pipe, Exhaust silencer, Flanges, Bellows, Battery and connecting wires, Operation manual and documents, Load test report, Water temperature sensor, Oil-pressure sensor, MCCB, Control panel, Maintaining tools, etc.
Optional Accessory
Gas Solenoid Valve, Pressure reducing valve, Pressure gauge, Fire retardant valve, Gas mixer, Engine coolant and oil heater, Alternator space heater, Heat exchanger, Remote control system with RS232/485 communication interface, Floating battery charger, Fuel-water separator, ATS, VTS, Paralleling system, Synchronizer, Moving trailer or wheels, Sound-proof canopy, Water-proof canopy, Extra spare parts.
Silent Canopy performance
1. Steel Weatherproof Canopy
2. Built In Fuel Tank
3. Built In Control Panel
4. Built In Start Battery
5. Power Output Rapid Insert
6. Doors for Looking or maintaining
7. Air Louver for Intake & Exhaust
8. Exhaust Gas Silencer
9. Assembled smoke pipes
10. Filled with high quality silencer cotton
11. Strong sense of design
12. Easy for operating
ATS System
If the generator set will be used as a standby power, the auto transfer switch (ATS) is necessary and essential. Because ATS can automatically transfer load from Mains power to generator set. In normal, when the Main power fails or voltage drops below 80% of the normal voltage, ATS will auto start standby generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reaches at rated speed, the ATS will transfer the load to standby generator sets automatically.
Quality Warranty Period
One year or 1000hours from the genset's delivery from the seller, subject to whichever comes first. Customers can have get the warranty from both the engine or alternator suppliers and also from King Power during the warranty period. We promise to test every generator set before delivery.
After-sale service
King power provides free technical support and spare parts during the warranty period. We can also provide support to the customers, if the customers need us to help fix the installation or commission, only charging the necessary fees. All life-span technical support on line can be offered freely.
