78 Numeric Keys Programmable Mechanical Keyboard

Product Description

78 Keys Programmable Keyboard
(Model No.: KB78)

Key Features
With 78 Cherry MX keys based on Gold Cross point technology, and have tactile feeling; Laser-engraved keycap symbols or high quality UV silk screen printed keycap symbols; Operating life cycle of individual keys: Soft contact mode 50 million strokes, Key click mode: 20 million strokes; Damaged keys can be easily replaced and hence save the replacement cost; With internal metal plate for key fixation; Waterproof, dust proof and ESD; Different keycaps (1/2/4 fold and Numeric) are available;
Programmable Features All 78 keys can be programmed,each key can program 255 characters All data can be retained for no less than 100 years without additional battery Special E2PROM and ESD design to ensure security of programmed data. Does not require a TSR program and hence avoids application software crashes Provides multi-level programming Provides for a variable time delay of up to 255 seconds in each programmed string Support PS/2 programming in DOS, Windows9X, Me, 2000, XP

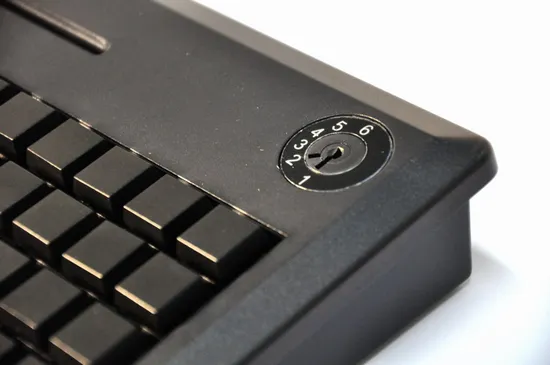

Key lock Features 6 steps Key lock Life cycles: >25,000 Have tactile feeling
Magcard Reader Features Comply with ISO 7812, IBM, ,AAMVA,JIS-2 Support programmable MSR setting for the header, tailor, separator, suffix and prefix, Card swipe speed: 10 to 100 cm/s; 500,000 swipe cycles Track sequence Track 1: 210BPI with max 76 characters
Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters
Track 3: 210BPI with max 107 characters Track Option: One Track: Track 1or 2 or 3
Two tracks: Track 1 and 2, or Track 2 and 3
Three Tracks: Track 1, 2 and 3 Dimension: 283X188X50mm
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
Why You Choose OCOM?
Leading One-Stop Supplier for POS and Auto-ID Related Products;
11 Years OEM/ODM Experience;
Qualified by Global Fortune 500 Companies;
Tier 1 customers including Unilever, O2, Star ...
2300+ Customers Cover 159 Countries;
Top 1 Level Trade Assurance upto 399,000.00usd 100% protect your money;
ISO9001, FCC, CE , Rohs, Soncap, POA, BIS Certificates ;
12+1 months warranty;
Shortlisted in "China Best Employer";
Belief: Integrity Based, Strive for Excellence, Win-win Cooperation.
