2023 New Arrival Steel Bar Wire Straightener and Cutting Machine/High Quality Straightener and Cutter/Steel Coil Straightener and Cutter

Product Description

2023 newest CNC Steel Coil/wire Straightener and Cutter
1. Steel wire straightener and cutter is a kind of highly effective equipment, it has the following features: 1) Speed can be adjusted
2) Adapt to different workers
3) High efficiency, quick modulation speed, smaller error and material loss to a minimum
This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It's made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.
Steel Bar Straightening and Cutting Machine Technical Parameters:

Model No.	YGTQ4-12(1) NC	YGTQ4-12(2) NC	YGTQ4-12(3)NC	YGTQ4-12(4) NC	YGTQ4-12(5)NC	YGTQ4-14(1)NC	YGTQ4-14(2)NC
Round bar	φ 4-φ 12mm	φ 4-φ 12mm	φ 4-φ 12mm	φ 4-φ 12mm	φ 4-φ 12mm	φ 4-φ 14mm	φ 4-φ 14mm
Deformed bar	φ 4-φ 10mm	φ 4-φ 10mm	φ 4-φ 10mm	φ 4-φ 10mm	φ 4-φ 10mm	φ 4-φ 12mm	φ 4-φ 12mm
Mini Cutting length(mm)	300mm	200mm	300mm	500mm	300mm	300mm	300mm
Cutting error	±10mm	±10mm	±10mm	±10mm	±10mm	±10mm	±10mm
Straighten speed	45m/min	53m/min	0-80m/min	60m/min	0-85m/min	0-85m/min	6-100m/min
Straighten and pulling motor	7.5kw	9kw	7.5kw	9kw	9kw	11kw	15kw
Cutting motor	5.5kw	/	4kw	/	5.5kw	5.5kw	5.5kw
L*W*H	2×0.64×1.3m	1.8×0.65×1.1m	1.9×0.64×1.3m	2.1×0.65×1.2m	2.4×0.64×1.3m	2.9×0.64×1.3m	2.9×0.64×1.3m
Weight	900kg	500kg	700kg	700kg	850kg	1000kg	1000kg
Length of steel towe	2m*4pcs=8m	2m*4pcs=8m	2m*4pcs=8m	2m*4pcs=8m	2m*4pcs=8m	2m*4pcs=8m	2m*4pcs=8m

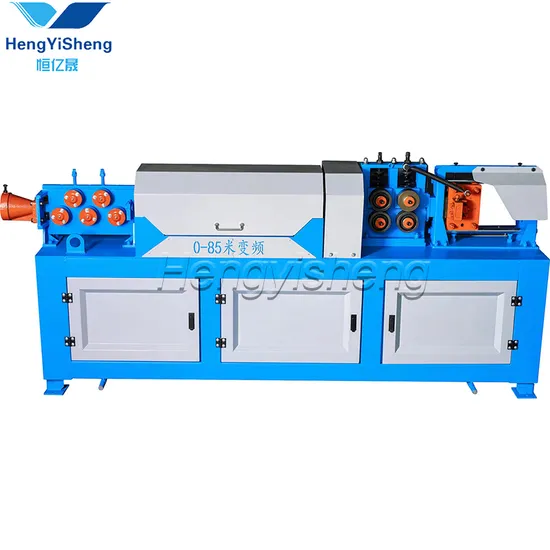

Steel wire straightener and cutter pictures:
Steel Bar Straightening Cutting Machine Packing and Delivery Pictures:
Our services

OEM orders are accepted: We can manufacture machines according to your requirement with your design, logo, color, material and brand information.
Constantly service before and after sales: our sales and engineers could provide constantly service for you.
Training service: free training is offered if you send for your workers to our factory.
Engineers available to provide overseas service: We could send for engineer to construction site to install machine and train workers.
