Small 5m3 Mini LPG Propane Gas Storage Tank

Product Description

Product Description Horizontal Household LPG Storage Tank Vertical Household LPG Storage Tank LPG Household Storage Tank
HONGTU has the design and fabrication capability of household storage tank and stationary storage tank, including above-ground storage tank, underground storage tank, horizontal storage tank, and vertical storage tank etc., which is customized according to the customers' requirement.
Technical Specifications
Design Codes: ASME BPVC VIII-1/VIII-2,GB/T 150,JB/T 4732
Capacity: 0.5~1000m³
Material: SA-516, SA-612,Q370R etc.

Horizontal Household LPG Storage Tank
Water Capacity	Outside Diameter	Overall Length	Overall Height	Tank Empty Weight (Approx.)
570L (150 US GAL)	761mm	1426mm	920mm	190kg
950L (250 US GAL)	761mm	2286mm	920mm	265kg
1000L (265 US GAL)	761mm	2400mm	920mm	280kg
1890L (500 US GAL)	1065mm	2380mm	1224mm	510kg
3785L (1000 US GAL)	1115mm	4185mm	1275mm	925kg
4730L (1250 US GAL)	1115mm	5175mm	1275mm	1130kg
DESIGN PARAMETERS
Design Pressure	1.724 MPa(250 Psig)	Corrosion Allowance		0mm
Design Temperature	51.7ºC(-125ºF)	MDMT		-29ºC(-20ºF)
Filling Medium	LPG	Filling Ratio		0.85
Shell & Head Material	SA-516 GR.70 (As-rolled)	Forging Material		SA-105 (Normalized)
Hydro./Gas Leak Test Pressure		2.25/1.724 MPa(325/250 Psig)
Mounting Type		Aboveground and Horizontal
Tank Surface Painting		The dry film thickness is 185um
Standard and Code		According to ASME BPVC, Section VIII, Div. 1. 2017 edition
Valves & Fittings for Choice		Full set of valves & fittings are available, e.g. safety valve, liquid withdrawal, level indicator, multivalve, filter valve, draining pipe, etc. International famous brands such as REGO, MEC, CAVAGNA, WIKA, Rochester etc. are available, CIMC Hongtu has long and reliable cooperation relationship with these giant cooperation, competitive price will be offered.
Note: Above parameters are only for references, CIMC Hongtu can customize the products as per your different requirements. This table only shows main parameters of aboveground household LPG storage tank, CIMC Hongtu also supplies UNDERGROUND household LPG storage tank.

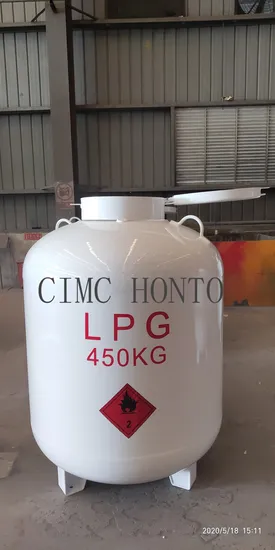

Vertical Household LPG Storage Tank
Water Capacity	Payload at 85%	Inside Diameter	Overall Height	Tank Empty Weight
461L	185kg	650mm	1649mm	171kg
497L	200kg	650mm	1720mm	178kg
745L	300kg	800mm	1767mm	275kg
1243L	500kg	942mm	2137mm	490kg
2490L	1000kg	1295mm	2371mm	765kg
4984L	2000kg	1700mm	2654mm	1630kg
Design Pressure	1.724 MPa	MAWP	1.7 MPa at 40ºC
Design Temperature	40ºC	MDMT	-20ºC at 1.7 MPa
Medium Name	LPG	Specific Gravity	0.47 at 15.6ºC
Shell & Heads Material	SA-516 GR.70 As-rolled	Corrosion Allowance	0 mm
Hydro. Test Pressure	2.25 MPa	Air Leakage Test Pressure	1.7 MPa
Standard & Code	ASME Boiler and Pressure Vessel Code, SECT. VIII DIV.1
Valves & Fittings for Choice	Full set of valves & fittings are available, e.g. safety valve, liquid withdrawal, level indicator, multivalve, filter valve, draining pipe, etc.International famous brands such as REGO, MEC, CAVAGNA, WIKA, Rochester etc. are available, CIMC Hongtu has long and reliable cooperation relationship with these giant cooperation, competitive price will be offered.
Note: Above parameters are only for references, CIMC Hongtu can customize the products as per your different requirements.

Certifications

Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.
In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.
The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.
The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.
The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.
"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc. Our Advantages 01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International Services and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
