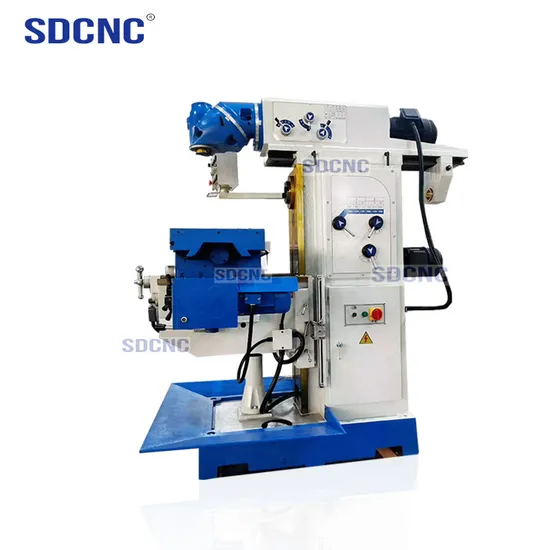

X6132 Selection Digital Display Heavy Cutting Horizontal Milling Machine

Product Description

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's
Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign
trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining
center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling
machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine
series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed
and other machine tools.
Product Parameters
The main performance characteristics:
X, Y, Z axis super audio hardened guide rail and high precision grinding
Manual lubricating device can be used to lubricate the lead screw and guide rail.
Special accessories: vertical milling head, it can achieve the function of vertical milling.
Product main technical parameters:

Specifications	Item	X6136
Spindle taper		7:24 ISO50
horizontal spindle center to the working table surface	mm	0-420
Horizontal spindle center to ram	mm	175
Spindle speed range	r/min	60-1800(12 steps)
Working table size	mm	1320*360
Max.swivel angle of working table		±30
Spindle travel(longitudinal/cross/vertical)	mm	1000*280*400
Working table feed speed longitudinal/cross	mm/min	22-555(8 steps)(rapid speed 810)
Vertical lift speed of working table	mm/min	590
T-slot (number/width/pitch)	mm	3/18/80
Beam travel	mm	500
Main spindle motor	kW	4
Feed motor power	W	1100
Lift motor power	W	1100
Coolant pump motor power	W	90
Coolant pump flow	L/min	25
N.W./G.W.	kg	2300/2400
Machine size	mm	1900*1830*2000
