Pet Bottle Washing Recycling Line
| US$20,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LH-PETB300
Screw
Single-Screw
Certification
ISO9001:2008, CE
Capacity
Max.2000kg/H
Voltage
Customized
Material
Pet Bottles
Color
Customized
Transport Package
Film Packing
Specification
300; 500; 1000; 2000
Trademark
LANHANG
Origin
China
HS Code
84742090
Production Capacity
50 Sets/Year
Product Description

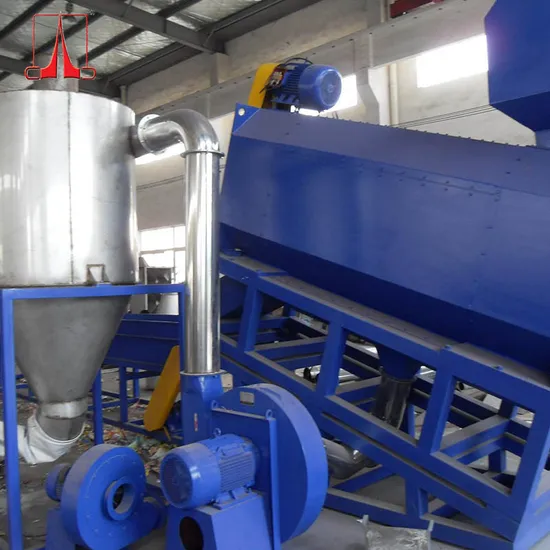

PET Bottle Washing Recycling Line Introduction: To separate PET bottles to flakes from PE/ PP label, cap, oil, garbage, protect the environment, avoid white pollution.This recycling line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc. Main technical parameters:Washing Line:
| No | Item | Qty | Remark |
| 1 | Bale breaker | 1 set | Cut and break packaged PET bottles |
| 2 | Belt conveyor | 1 set | Conveying bottles |
| 3 | Screening machine | 1 stet | Filtering sand,dirty,impurity |
| 4 | Belt conveyor | 1 set | Conveying bottles |
| 5 | Label remover | 1 set | Removing label from surface of bottle Label removing efficiency:90%-95% |
| 6 | Manual sorting table | 1 set | Sorting different plastics by manually |
| 7 | Metal detector | 1 set | Detecting metal,aluminum, Stainless steel and so on automatically |
| 8 | Belt conveyor | 1 set | Conveying bottles |
| 9 | Wet crusher | 1 set | With water, the material of the blad e adopt SKD-II or 9CrSi |
| 10 | Screw feeder | 1set | Conveying flakes |
| 11 | Twin screw floating washer | 1 set | Washing and separate PP caps/label according to different specific gravity |
| 12 | Screw feeder | 1 set | Conveying flakes |
| 13 | Friction washer | 1 set | High friction efficiency by high speed, adopt Germany technology |
| 14 | Twin screw floating washer | 1 set | Washing and separate PP caps/label according to different specific gravity |
| 15 | Dewatering machine | 1 set | High dewatering efficiency by high speed, adopt Germany technology, water content 5% |
| 16 | Label separator | 1 set | Separating leftover label from pet flakes |
| 17 | Drying system and Storage hopper | 1 set | Drying by electric, water content ≤2% |
| 18 | Electrical control cabinet | 1 set | Adopts ABB , SIEMENS and OMRON as main electric component. |
| Remark: Some equipment maybe added or deleted from the above list as the dirty degree of the bottles and the capacity of the PET recycling line. | |||
