Industrial Stone Cutting Machine for Large Slabs of Granite, Marble, and Quartz for Precise Processing

Product Description

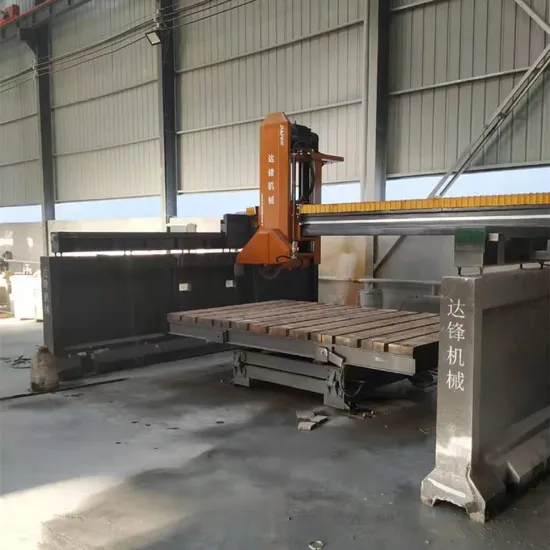

DF-800 is Laser Stone Cutting Machine For Largre Slabs
Machine Features:
1.The machine adopt cast iron on the main part of machine body ensure stability while cutting
2.The cutting speed is controlled by the inverter to achieve stepless adjustment, the head movements, table title up, rotation, and position use hydraulic transmission to move. it can be cut by manually and fully automatic easily.
3.It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning(Omron brand encoder)
4.The worktable is controlled by hydraulic rotation and also can be locked in any position Manually
5.It is applicable to cutting the valuable and large-sized stone board for many specifications
Technical parameters:

blade diameter			400-800mm
max. vertical stroke			350mm
worktable size			3200 × 2000mm
max cutting depth			280mm
worktable tilt degree			0-85°
worktable rotating degree			0-90°(each 45°)/ 360° optional
water consumption			1.8m³/h
motor power			22kw
weight			5.6t
Dimension			6000 × 4800 × 3000mm

After Sales Service:
We provide skilled and rich experience technician for installation and after-sale service.
Packaging & Shipping:
The machine will be consolidated tighly and safely within container and deliver by sea or railway, we offer fast delivery and prompt react.

FAQ:
Q: How do I install and operate the machine, after receiving it?
A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.
Q: Are you manufacturer or trading company?
A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.
Q: What is your advantage?
A: Firstly we are manufacturer, you could get best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance and fault handling package of services. Thirdly, we offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent. Fourthly, we give you technology support on not only machine, but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.
Q: When can you ship my order?
A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.
