High-Speed CNC Drilling Machine for Heavy-Duty Steel Plates

Product Description

ZMDE Heavy-Duty H Beam Steel Plate Processing High Speed Steel Plate Flange CNC Drilling Machine
Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

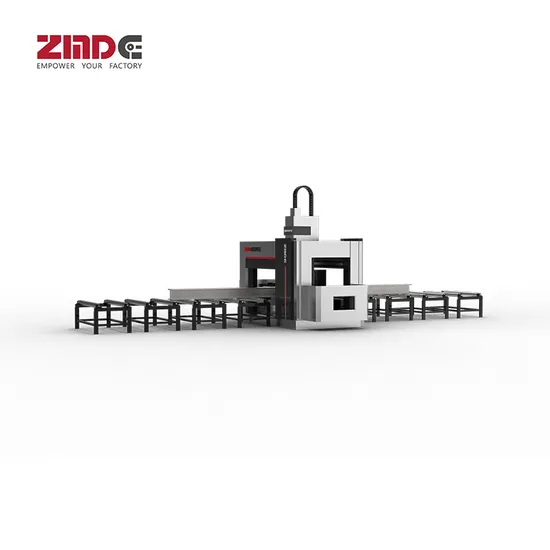

The device can drill precise holes on three sides of H-beam steel simultaneously. It boasts 7 CNC axes and uses CAD/CAM to directly generate processing programs. With a maximum H-beam section size (belly height × wing width) of 1000×500mm and a maximum drilling diameter of 33.5mm, this machine is designed for precision and efficiency. The control system comprises a computer numerical control system, AC servo system, photoelectric encoder, and PLC. Just input the workpiece size, and it will automatically generate, store, recall, display, and process machining programs by part number at any time.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a high-tech enterprise specializing in the research, development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as a national specialization, speciality, and new 'small giant' enterprise, our core industries include steel structure assembly building intelligent industrial mother machines and industry IoT and intelligent control systems.
Headquartered at Lingang New Area, Pudong New District, Shanghai, our base spans 32,000 square meters and hosts the Research Institute of Artificial Intelligence for Assembled Buildings. This facility is pivotal for our management, R&D of high-end core technologies in AI for Assembled Buildings, Intelligent Buildings, and Industrial IoT.
Our Shandong base, located in Weicheng District, Weifang City, focuses on the research, development, and production of intelligent industrial mother machines for steel beams and walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients. 2. Q: Could you specify the payment terms you accept? A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer). 3. Q: What is the typical delivery time for your orders? A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently. 4. Q: What is the duration of your warranty period? A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits. 5. Q: Do you offer ODM/OEM services? A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
