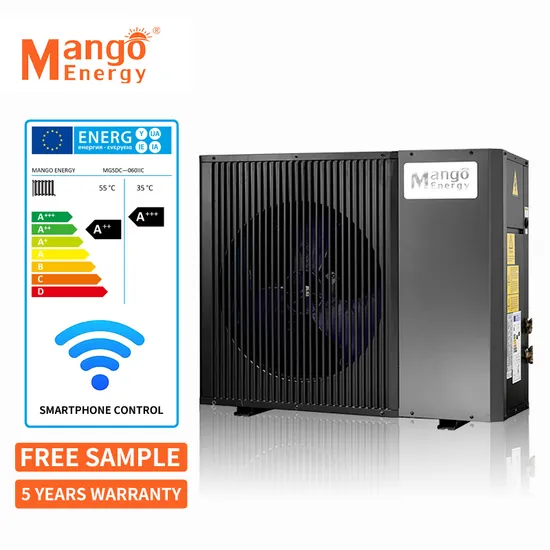

R290/R32 Monoblock DC Inverter Air to Water Heat Pump Heating Cooling Dhw with WiFi Smart Control High Cop ERP a+++ Intelligent Defrost Low Gwp

Product Description

A+++ DC Inverter air to water heat Pump R32 R290

Name	QII Series DC Inverter Heat Pump
Heating Capacity	9-34kW
COP	2.5-5.6
Warranty	5 Years Full Unit
MOQ	1 UNIT

Mango a+++ DC Inverter R32 R290 Air to Water Heat Pump Warmepumpe

Model					MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
HP					3HP	5HP	6HP	8HP	10HP
Ambient	Outlet	Power Supply			220-240V / 50-60Hz / 1ph or 380-415V / 50-60Hz / 3ph				380-415V / 50-60Hz / 3ph
+20°C	15-55°C	Heating Capacity		kW	11	20	24	30	34
		Power Input		kW	2.42	3.57	5.26	6.74	7.52
COP					5.5	5.6	5.56	5.45	5.1
+7°C	35°C	Heating Capacity		kW	9	14	16	24	30
		Power Input		kW	1.95	3.03	3.49	5.27	7.00
COP					4.61	4.62	4.59	4.55	4.48
+7°C	9-55°C	Heating Capacity		kW	9	14	16	24	28
		Power Input		kW	2.65	4.16	4.85	7.28	8.5
-12°C	40°C	Heating Capacity		kW	6	10.5	11.5	17.8	22
		Power Input		kW	2.46	4.29	4.71	7.33	9.17
COP					2.44	2.45	2.44	2.43	2.4
Heating Operate Range		Ambient		°C	-30 ~ 25
		Heating Side		°C	18 ~ 60
Hot Water Operate Range		Ambient		°C	-30 ~ 35
		Water Side		°C	25 ~ 60
+35°C	7°C	Cooling outlet		kW	7	11	13	20	24
		Power Input		kW	2.54	3.91	4.68	7.11	8.82
EER					2.75	2.81	2.78	2.81	2.72
Maximum Working Pressure				Bar	44 Bar
Compressor				-	Panasonic DC Inverter Compressor with EVI System
Refrigerant				-	R32
Fan Motor				-	Nidec DC Brushless Motor
Controller				-	Touchscreen LCD Controller with WIFI and 13 Languages
Water Heating Exchanger				-	SUS 316 Brazed Plate Heat Exchanger
External Cabinet				-	1.5MM Galvanized Steel With Powder Coating
EEV				-	"DUNAN" EEV
Certificates				-	CE	FCC	UKCA	ISO	ERP A+++
Outdoor Air Flow				m3 / h	2600	5600	5600	7800	7800
Water Flow (Built in Pump)				m3 / h	>1.6	>3.1	>3.1	>3.4	>3.4
Expansion Tank				L	2L
Water Pipe				inch	1"	1"	1"	1-1 / 4"	1-1 / 4"
Noise in 1M				dB(A)	≤50	≤56	≤57	≤59	≤60
Unit size				mm	925*375*770	1050*400*1350		1175*400*1482
Net Weight / Gross Weight				Kg	76 / 85	120 / 146	125 / 151	165 / 194	175 / 212

FAQ Q1> What does mango energy company do ?
A1:Our Company Professional Supply: Heating Cooling DHW DC Inverter Heat Pump 9-34kW Swimming Pool Heat Pump 11-192kW Commercial Heating Cooling Heat Pump 9-180kW Commercial Hot Water Heat Pump 10-72kW Water / Ground Source Heat Pump 11-200kW Water Tank and Other Components.
Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 200 PCS / day.
Q3> What is Mango heat pump certification ?
A3 : Mango energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and CCCcertificate. Get Class A+, A as ErP EN14825 test report .
Q4> What Mango energy do for their agent / distributor /OEM ?
A4 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.
Q5> What Mango energy offer to their business partner ?
A5: Mango energy offer 1%~2% free spare parts according to order quantity .
Offer whole this district market exclusive sales right .
Offer rebate as this district agent sales amount within one year .
Offer best competitive price & repair parts .
Offer 24 hours online service .
Q6> where is Mango energy heat pump using ?
A6: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used in home heating, hotels hot water & heating , restaurants, hospitals,schools,bath center, residential central heating and hot water plants, etc.
