Reliable Cryogenic Microbulk Tank for Liquid Oxygen Nitrogen Argon for Hospital

Product Description

1m3 2m3 3m3 5m3 7.5m3 10m3 20m3 Micro Bulk Tank Mini Small Low Temperature Equipment Cryogenic Storage Tank Of Liquid Oxygen(LO2) /Nitrogen(LIN)/Argon(LAR) /Carbon Dioxide (LCO2) /Nitrous Oxide(LN2O)Liquefied Natural Gas(LNG) Product Description
When to use microbulk tank?

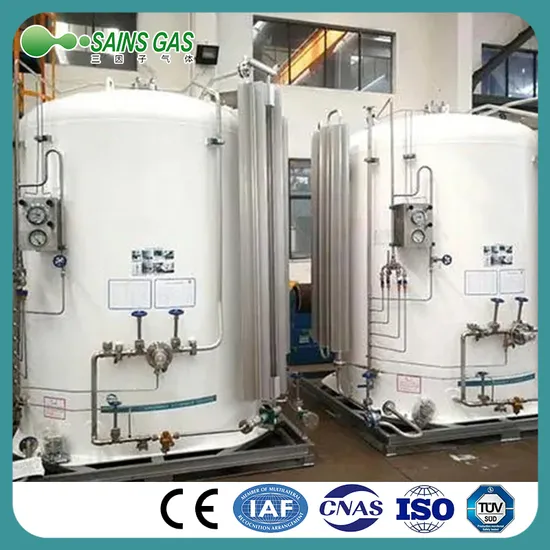

Microbulk tanks are typically used in situations where the storage and distribution of cryogenic fluids are required on a smaller scale(usually 1 to 5m³).Our micro-bulk tank is a combination of small volume storage tank, booster, evaporator and piping system into a centralized gas supply unit. As its compact structure and simple and easy installation system, is widely used in the industry of laser processing, electronics, scientific & research, chemical, welding, etc. We can provide different solutions of skid based on different process requirements to achieve single, double or multiple gas mixing requirements.
Main types and parameters

Full Volume: 1,000L~10,000L

Work Pressure: 0.80MPa/1.60MPa/2.30MPa/3.45MPa

Filling Rate:95%

Inner Tank Design Temperature: -196ºC

Shell Tank Design Temperature: -20ºC~+50ºC

Insulation: Vacuum with Multi-layer Wrapped

Stored Medium: LO2,LN2,LAr,LNG,LCO2

Inner Tank Material: SS30408 or SA240

Shell Tank Material: Q345R or SS30408

Serial number	Product Categories	Specifications	Specifications (mm)	Weight (kg)	Maximum working pressure (MPa)	Nominal volume(L)	Remark
1	Industrial quick cooling vertical storage tank	FV1-1000-8	1500*1450*2600	720	0.8	1000	Stainless steel housing
2							Carbon steel housing
3		FV1-1000-16	1500*1450*2600	810	1.6		Stainless steel housing
4							Carbon steel housing
5		FV1-2000-8	1700*1650*3000	1178	0.8	2000	Stainless steel housing
6							Carbon steel housing
7		FV1-2000-16	1700*1650*3000	1267	1.6		Stainless steel housing
8							Carbon steel housing
9		FV1-3000-8	1900*1850*3100	1483	0.8	3000	Stainless steel housing
10							Carbon steel housing
11		FV1-3000-16	1900*1850*3100	1689	1.6		Stainless steel housing
12							Carbon steel housing
13		FV1-3000-25	1900*1850*3100	2125	2.5		Stainless steel housing
14							Carbon steel housing
15		FV1-3000-35	1900*1850*3100	2518	3.5		Stainless steel housing
16							Carbon steel housing
17		FV1-5000-8	2200*2400*3300	2128	0.8	4990	Stainless steel housing
18							Carbon steel housing
19		FV1-5000-16	2200*2400*3300	2568	1.6		Stainless steel housing
20							Carbon steel housing
21		FV1-5000-25	2200*2400*3300	3228	2.5		Stainless steel housing
22							Carbon steel housing
23		FV1-5000-35	2200*2400*3300	3785	3.5		Stainless steel housing
24							Carbon steel housing
25	Quick cooling LNG	FV6-5000-8	2600*2800*3400	2128	0.8	4990	Stainless steel housing bare tank
26							Carbon steel housing bare tank
27		FV6-5000-16	2600*2800*3400	2568	1.6		Stainless steel housing bare tank
28							Carbon steel housing bare tank
29	Carbon dioxide	FV5-5000-22	2200*2400*3300	2868	22	4990	Stainless steel liner,Housing stainless steel
30		FV5-5000-22			22		Stainless steel liner,Housing carbon steel
31		FV5-5000-22	2200*2400*3300	2868	22		Carbon steel liner,Housing carbon steel
32		FV5-5000-22			22		Carbon steel liner,Housing stainless steel
33		FV5-3000-22	1900*1850*3100	1980	22	3000	Stainless steel liner,Housing stainless steel
34		FV5-3000-22			22		Stainless steel liner,Housing carbon steel
35		FV5-3000-22	1900*1850*3100	1980	22		Carbon steel liner,Housing carbon steel
36		FV5-3000-22			22		Carbon steel liner,Housing stainless steel
Note: Due to differences in container design pressure, the above data may differ slightly. Please contact us for more details.

Detailed Photos
Factory storage real shot image
Packaging & Shipping
Key Features to Consider When Buying Cryogenic Storage Tanks

1. Temperature Stability and Insulation

Maintaining consistent ultra-low temperatures is critical for the preservation of sensitive samples and materials. Choose tanks with high-quality insulation and temperature stability to ensure the integrity of the stored contents. Vacuum insulation and multi-layer insulation are commonly used to minimize heat transfer.

2. Capacity and Size

Consider the capacity requirements of your application when selecting a cryogenic storage tank. Tanks are available in a range of sizes, from small portable models to large industrial tanks. Ensure the tank can accommodate the volume of cryogenic liquid needed for your specific needs.

3. Material and Construction

Cryogenic storage tanks must be constructed from materials that can withstand extreme cold and resist corrosion. Stainless steel and aluminum are commonly used materials for their durability and strength. Ensure the tank meets industry standards for quality and safety.

4. Safety Features

Safety is paramount when handling cryogenic liquids, which can cause severe burns and pose explosion risks if not properly managed. Look for tanks with pressure relief valves, safety vents, and secure locking mechanisms. Automated monitoring systems can provide real-time alerts for temperature and pressure changes.

5. Ease of Use and Handling

Consider the ease of use and handling features of the cryogenic storage tank. Tanks with ergonomic designs, easy-to-read gauges, and convenient access points for filling and dispensing cryogenic liquids improve user experience and safety. Mobility features, such as wheels or handles, can enhance portability.

6. Maintenance and Support

Regular maintenance is essential for the safe operation of cryogenic storage tanks. Choose tanks with accessible components for easy cleaning and inspection. Availability of technical support and service plans can ensure your tank remains operational and effective over time.

Company Profile
Qingdao Sains Gas Technology Co.,Ltd is a professional gas manufacturer of all kinds of gas. With our abundant experience and unique technological development capabilities, we support a wide range of industrial sectors, including steel, chemicals, electronics, automobiles, construction, shipbuilding, food/beverages, and medical care. Our commitment is "focusing on gas application solutions".
Certifications
Our Advantages

Customization

We offer customized solutions to meet your specific needs. Our team of experts will work closely with you to develop a product that perfectly matches your requirements.

High Quality with Reasonable Competitive Price

The innovative modular piping system ensures that the static evaporation rate of the tank is better than the industry standard requirements.. Besides, we use advanced technique to reduce any possible cost without lowing quality standard to provide our customers competitive price.

Various range of products

Dewars (cryogenic cylinders) 80L ~1000L. Microbulk tanks: 1000L ~10 000L. Stationary storage tanks: 1m3 ~300m3. ISO tank containers: 10ft, 20ft, 40ft. Semi-trailers

FAQ
Q1: Payment method accepted?
A1: TT,L/C,West Union,Paypal or any other ways.
Q2:Can we use our LOGO and design?
A2:Of course, we offer OEM/ODM service.
Q3:Any warranty for the goods?
Q3:Normally 4 year warranty after delivery except artificial damage.
