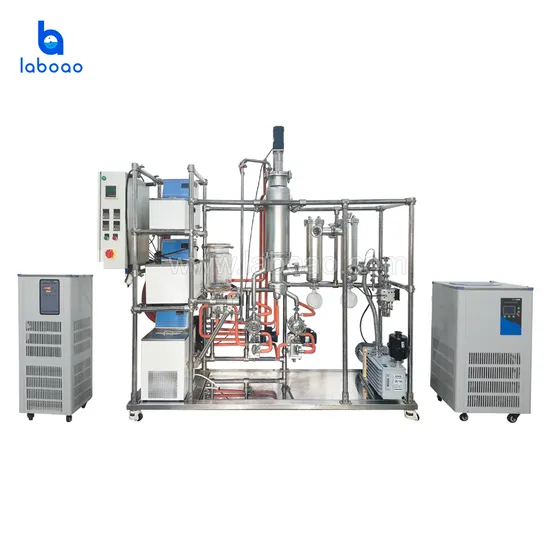

Laboao Turn-Key Solution Stainless Steel Molecular Distillation / Short Path Distillation

Product Description

Product Description
LABOAO Turn-key Solution Stainless steel Molecular Distillation / short path distillation
Wiped Film/Molecular distillation is the best thermal separation method for heat-sensitive material because it is the gentlest type, causing the least amount of thermal degradation of product. Our wiped film evaporation and distillation system are widely used for plant oil, garlic oil, cod liver oil and chemical and pharmaceutical industries.
Shorter residence time, lower separation temperature, capability of continuous and unattended operation makes wiped film molecular (short path) evaporation and distillation system standing out.
Molecular distillation is a special liquid-liquid separation equipment. Unlike traditional distillation, it relies on the boiling point difference separation principle, but on the difference of the average free path of different substances. When the liquid mixture flows along the inner wall of the main evaporator and is heated, light and heavy molecules will escape from the liquid level and enter the gas phase. Due to the different free paths of light and heavy molecules, the molecules of different substances move different distances after escaping from the liquid level. After passing through the built-in condensate pipe of the main evaporator, the light molecules reach the condensate pipe and are discharged, while the heavy molecules cannot reach the condensate pipe and are discharged along the mixed liquid, So as to achieve the purpose of material separation.
Working Principle
The materials are transported from the feed tank to the jacketed main evaporator. The main evaporator is continuously heated. The built-in scraper evenly scrapes the materials into a layer of flowing liquid film for instant evaporation. The light component materials begin to vaporize and adsorb on the built-in condensing coil, flow into the receiving bottle along the outer wall of the condensing pipe, and the heavy component materials flow into the receiving bottle along the inner wall of the main evaporator.
1. Modularized design for flexible options
2. Continuous feeding & collection modules design, saving labor cost and working time
3. Fully jacketed design, wide applications for different materials
4. SUS316L stainless steel, safe and reliable
5. Sight glass and quick connect design, easy to disassemble and clean
Detailed Photos

Product Parameters

Model	LSMD-0.1	LSMD-0.15	LSMD-0.25	LSMD-0.35	LSMD-0.5	LSMD-1	LSMD-1.5	LSMD-2	LSMD-3	LSMD-5
Condenser area (m2)	0.17	0.3	0.4	0.7	1.7	2.7	3.5	4.9	6.5	8
Effective evaporation area (m2)	0.1	0.15	0.25	0.35	0.5	1	1.5	2	3	5
Feeding rate (LH)	5~12	6~15	10~25	15~30	20~60	50~120	60~180	100~200	100 ~300	200 ~500
RPM (r/min)	30~350
Stainless steel material	304/316
Feeding method	Gear pump automatic continuous feeding
Discharge method	Gear pump automatic continuous discharge
Work temperature	Within 350ºC
Voltage	200V 50Hz (can be customized)
