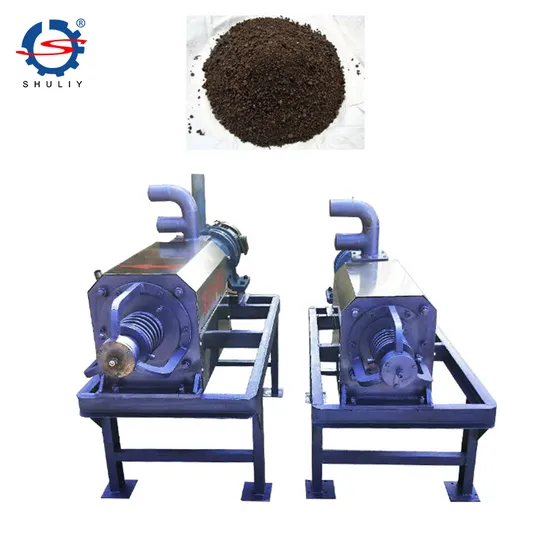

Manure Scraper Chicken Dung Manure Dehydrating Dewatering Machine

Product Description

Machine description:
Machine summary of animal manure dehydrate machine
The dewatering machine for cow dung uses the pump to pull the fowl manure, cow dung, etc. into dewater equipment, the material through the screen and then press by the screw, the rotary speed of the machine can reach 45r/min, within the press of the screen and high rotary speed, the material will be dewatered by the machine, and the water will enter into the pool through the screen.
Machine application of animal manure dehydrate machine

1. Animal wastes, such as pig manure, cow dung, poultry dung, horse excrement. and other kinds of animal manure.

2. Biogas slurry, sludge gas, and biogas fermentative residue.

3. Maniocwaste, tea slag, sweet potato waste, maize pulp, bagasse, medicine dregs, wood pulp fiber, paper pulp fiber, bean dregs, coffee grounds, and so on.

4. Any kinds of solid-liquid separation.

Machine structure of animal manure dehydrate machine
Screw: The machine adopts a high-strength screw shaft, anti-corrosion alloy double-coil blade, and spiral blade with manganese treatment, which is twice the service life of other similar products.
Screen Mesh: Screen mesh made of stainless steel.Made by multiple programs. For different materials, you can replace the screen with different density to achieve the desired effect.
Outlet: There is a spring at the exit to adjust the dryness and wetness of the extruded material, and separate the solid manure and manure with a water content of only 35%.
Cycloidal Reducer: Compact and small size.Smooth operation and low noise. Long service life, the main parts are made of high carbon chrome steel material, high strength is obtained by quenching treatment (HRC58~62), and some transmission contact adopts rolling friction, so it has long durability and long service life. Important parts list
1.One unit pump(with cutting knife, never will be blocked)
2.One unit water pipe
3.One unit switch box
4.Two units motor(one is for separator, the other is for the pump)
5.One unit screw(stainless steel, anti-corrosive)
6.One unit screen from three model (0.3mm, 0.5mm,0.75mm ) (stainless steel, anti-corrosive)
Main technical parameters of animal manure dehydrate machine

Model	SL-180	SL-230
Motor Power	4 kW	5.5 kW
Pump Power	3 kW	3 kW
Machine Rotary Speed	33.7 rpm	45 rpm
Working Capacity	4 m³/h	7 m³/h

Multifunctional use of the machine display
Our company show:
Zhengzhou Shuliy Machinery Co., Ltd. was found in 2000. Our company specializes mainly produce animal manure dehydrate machines and so on. We not only provide customers with cost-effective products but also provide first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa, and Mongolia. A perfect after-sales service system allows you to worry-free.
