Oil Filters Multi Core Filter Vacuum Filtration Filter Stainless Steel

Product Description

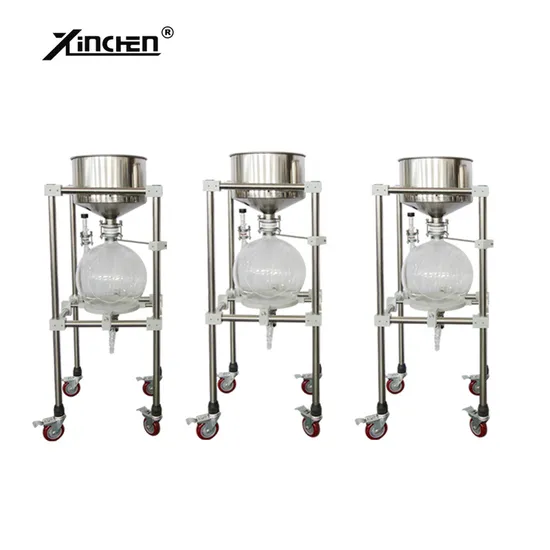

The Vacuum Suction Filter is mainly used for liquid-solid filtration under vacuum condition. Through filtration can be done simply with gravity, more often vacuum filtration is employed because the filtration speed is much faster with high vacuum. Liquid poured into a funnel passes through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold. Product Parameters

Product Model	ZKQ-5L	ZKQ-10L	ZKQ-20L	ZKQ-30L	ZKQ-50L
Glass Material	G3.3 high borosilicate glass
Funnel Material	SUS304
Filter Funnel Size	φ250*120mm	φ300*200mm	φ350*220mm	φ400*240mm	φ500*280mm
Material and Size of Seive Plate	SUS304/φ250	SUS304/φ300	SUS304/φ350	SUS304/φ400	SUS304/φ500
Filtering Device	Filter paper or filter cloth
Spherical Collecting Bottle	5L	10L	20L	30L	50L
Openings of Collecting Bottle	3
Suction Port	DN50	DN50	DN50	DN50	DN50
Exhaust Port	φ35	φ35	φ35	φ35	φ35
Discharge Value	DN25	DN25	DN25	DN25	DN25
Discharge Value Distance from Ground	250mm	300mm	300mm	300mm	300mm
Vacuum Degree	-0.098Mpa	-0.098Mpa	-0.098Mpa	-0.098Mpa	-0.098Mpa
Frame Material	SUS304 movable framework
The speed of material filtration is related to the following factors:
1.Material characteristics (such as: the size of the material and the fluidity of solid-liquid mixing)
2.The pore size of the filter paper or filter cloth ( the pore size is too small to block the flow rate of the filtrate)
3.The size of the filter sieve plate.
4.The vacuum degree of the system.

Product Features 1. High quality borosilicate glass 3.3 with excellent physical and chemical properties for glass parts.
2. Perfect sealing property and no dead corner design for charging solution or power more easily.
3. One vacuum value for connecting vacuum pump for processing vacuum filtration.
4. Cost-saving modular design and can be customized by clients' requirements.
5. Safe in operation, easy to move around with lockable casters.
Detailed Photos
B95 Water Circulating Vacuum Pump It is a new kind of multi-use equipment which designed on the basis of the principle of generating negative pressure by using the jet flow and using the recycled water as the working fluid, which can provide the vacuum conditions for chemical experiments and recirculated cooing water for the reaction equipment.
Product Characteristics
1.Obvious water-saving effect. The water added once can be used for a long term.
2.Multi-functional and integrated roles. Thisproduct, besides providing the vacuum conditions, can also equally perform the external cycle operation and provide recirculated cooling water for the reaction equipment.
3.Novelty appearance and easy usage, low height, small size, light weight and convenient movement.
4.Individual or simultaneous air pumping operation for the installation of five suction mouths.The suction pipeline is equipped with check values to prevent the recycled water from backing into the equipment of being vacuumized in case of accidental shut down in the process of vacuum operation.
5.Corrosion-resistant and pollution-free.The pump of this product is made of stainless steel, not subject to the influence of acid-base corrosion materials. Packaging & Shipping
1.Packing method: Standard export wooden box or base on your requests. 2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line. 3. Warranty
Any broken or damages of glass parts caused by delivery, will be afforded by Nanjing Ningkai company.
