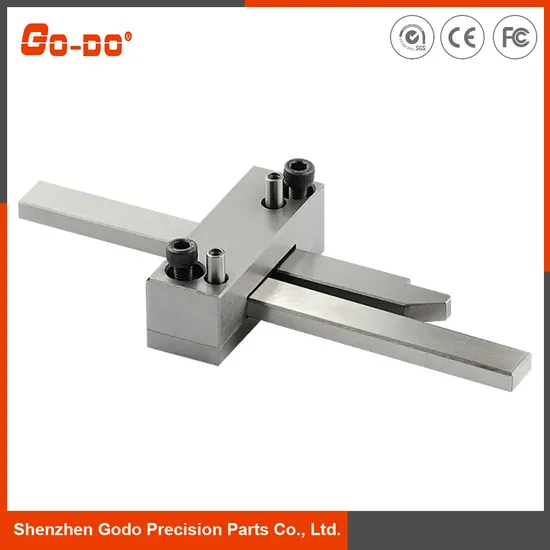

Standard Components Plastic Injection Metal Latch Lock

Product Description

Latch Locks Moulding Parts
1: mechanical interlocking design, safe and reliable.
2:Insert bar, end of pull rod adopt high frequency annealing treatment, so that easy to second time processing installed holes.
3: This latch parts not only control opening mold sequence ,But also control closed open sequence.
4: Ater installed, carry out a functional test, check whether the individual parts of the latch lock units moves smoothly, the stroke is applicable. Recommend testing on matched Molds machine or Injection machine, no Lifting Machine.
5:Some important parts are made of SKD61,Provide good lubricating while working,longer life
Product Description Mold Parts

Code	L	L1	L2	L3	L4	L5	L6	L7	M	M1	M2	M3	M4	N	N1	N2	W	W1	W2	W3	W4	W5	W6	A	B	S/min	S/max	F
Z170/1	63	22	63	100	16	125	13.8	80	8	6	5	14	7	49	40.5	8	22	6.5	6	12.5	6.5	6	12.5	5	M5	9.5	80	800
Z170/2	90	32.5	100	140	22.5	160	17.5	125	18	8	8	24	16	69	62	13	34	8	12.5	20	8	12.5	16	6	M6	9.1	110	1400
Z170/3	110	44	100	200	25	250	17.6	125	22	9	9	31	20	80	80	15	42	12.5	16	25	12.5	16	20	8	M8	10.5	190	2400

Manufacture	Shenzhen Godo Precision Parts Co., Ltd.
Mold type	Plastic injection mould,Die-casting injection mould,Precision machining
Industry	Automotive,Medical,Cosmetics,Mobile Phone,Stationery
Mould size	According to customer requirements
Material	DAC, SKH-51, HPM38, STAVAX, 1.2343, 1.2344, 1.2767, 8407, ect
Standard	DEM,HASCO,Misumi,Puch ect
Surface	Mirro polished,Technical Polished,Mold Tech texture, Nitriding ,
	plating ,VDI texture ect
Delivery	10-15 days after payment
Shipment	Sea shipment,Air shipment
Package	in bubble bag,plastic bag,carton,Customized
QC System	100% inspection before shipment
Equipment	The main processing equipment: Taiwan centerless grinder,
	within / outside the original red molding machine,
	surface grinder, table lathe, high-speed lathes,
	CNC lathes, sparks machine ect

How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first.
Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response
Warranty: Depend on product type
