Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000, EPA/EAC
Rated Power
86kw @ 2200rpm
Bucket Digging Force
70 kN
Max. Digging Depth
5470mm
Max. Digging Height
8760mm
Maximum Digging Radius
8300mm
Maximum Unloading Height
6310mm
Minimum Ground Clearance
430mm
Production Capacity
300units/Month
Product Description
Product Description

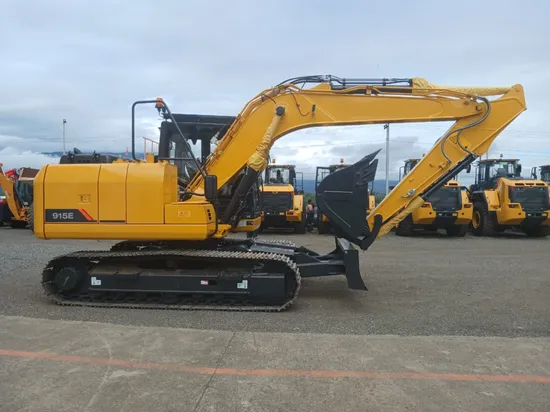

915E 0.6CBM Crawler Excavator
Get a greater return from your investment with 915E excavator. Offering the perfect balance between performance, quality and control, the 915E is a cost-effective addition to any fleet of excavators.
Ultimate Operator Control
The Intelligent Power Control (IPC) system makes it easy for even the most inexperienced operator to perform like a pro. Perfectly matched engine, electrical and hydraulic systems ensure the 915E consistently achieves maximum performance, fuel economy and control.
Reliable Parts
By teaming up with world-class component suppliers, its machines deliver the highest uptime and service life. With high availability of components, securing replacement parts is quick and easy, giving you peace of mind and less downtime.
Easy Access For Maintenance
Daily maintenance should be quick and easy. The 915E features world-class components with proven quality and availability. All filters and key components are convenient to access, maintain and inspect. Ultimately, it's these small details that save time and money.
Product Parameters
Item | 915E |
Operating Weight | 13800kg |
Gross Power | 86kW |
Bucket Capacity | 0.6m³ |
Travel speed | 5.1/3.3km/h |
Max. digging depth | 5470mm |
Max. digging height | 8760mm |
Maximum digging radius | 8300mm |
Maximum unloading height | 6310mm |
Gradeability | 35° |
Rotation speed | 12.94rpm |
Minimum ground clearance | 430mm |
Arm Digging Force | 97 kN |
Bucket Digging Force | 70 kN |
Track Shoe Width (STD) | 500 mm |
