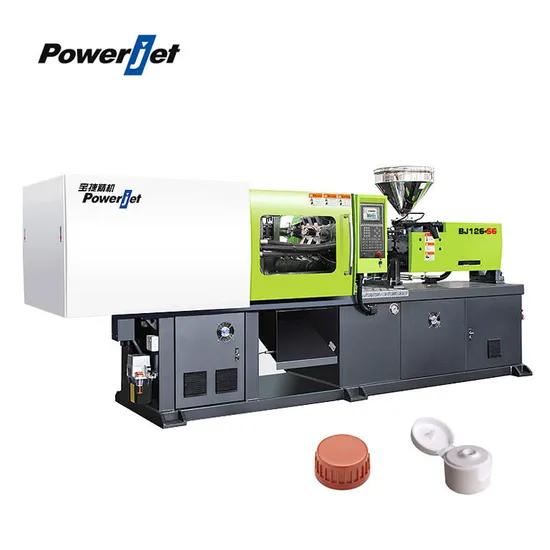

Powerjet Horizontal Plastic Bottle Lid Cover Making Injection Molding Machine

Product Description

STANDARD INJECTION MOLDING MACHINE
With The New Driving System For Our Standard Injection Molding Machine, BJ Series Saving More Energy Than Before. The Motor Will Stop At The Stage Of Cooling For Saving Energy And Also Can Provide Higher Injection Accuracy And Speed.
Clamping Force - 50~1380(Ton)
Driving System - Hydraulic
Motor Type - Servo Or Variable
Applications - Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts
FEATURES:
Servo Motor System shipment
Comparing with the traditional hydraulic machine, S6 series can save more 50% of the power, energy saving is more obviously during pressure hold & cooling stage.
Clamping System:
Reliable and durable, Effective mold protection High repeatability of mold opening and closing.
Injection System:
Stable & precise, easy for adjustment & operation by efficient separating screw and high mixing screw increase the range of material used.
Control System:
User-friendly control system, powerful, fast, precise control, easy to operate, the program can meet various process needs.
Lubrication System:
Major friction parts are equipped with lubrication points. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.
Product Description
Product Parameters

	DESCRIPTION	UNIT	BJ126-S6
CLAMPING UNIT	Clamping force	KN	1260
	Opening stroke	mm	350
	Max.datlight	mm	750
	Platen size	mm	610*610
	Space between bars	mm	410*410
	Max.mold height	mm	400
	Min.mold height	mm	145
	Ejector stroke	mm	100
	Ejector force	KN	42
INJECTION UNIT	Screw diameter	mm	40
	Screw L/D Ratio	L/D	20
	Injection Pressure	MPa	166
	Shot volume	cm3	238
	Screw stroke	mm	190
	Screw speed	rpm	190
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	11/14
	Heater power	kW	6

Packaging & Shipping
Company Information
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
