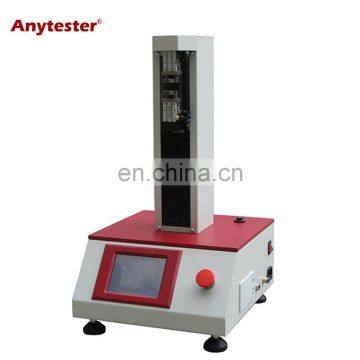

Electronic Single Fiber Strength Tester

Product Description

Product Description
ApplicationHY005E Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.Standard ISO 5079ISO 11566QB/T 2173ASTM D 3822BS 4029GB/T 14337GB/T 9997GB/T 13835.5Note: For more standards, please contact us Features1. Test functions:a) F1. Tensile testb) F2. Elasticity test at specified elongationc) F3. Repeated tensile test at specified elongation with settable two stop timed) F4. Elasticity test at specified loade) F5. Repeated tensile test at specified load with settable two stop time2. Dynamic data collection frequency more than 200Hz, will not lose peak value,more objectively reflect the material mechanics performance;3. LCD touch screen, software in both English and Chinese, easy and convenient to operate;4. High reliability and long service life;5. Linear density can be set freely;6. NXP 32-bit industrial-grade single-chip microcomputer control, 16 bit A/D converter, anti-interference is very good, data transmission fast;7. The test data (max, min, average, etc) display in each test;8. Pre-force can be set freely;9. The force calibration adopt digit calibrate, convenient and clear;10. With built-in mini-printer;11. With pneumatic clamp.Specification Item HY005ELoad range1000cNResolution0.01cNLoad error≤±0.05%F·SLoad precision≤±0.5% when 1%~120% of load rangeData collection frequency≥1000HzTest speed2~200mm/minGauge length≤200mmElongation resolution 0.01mmMin. clamping distance0.1mmClamping distance set methodDigital set or auto setUnit conversionN, cN, kgf, mm, lb, inDimension400*400*600mmPower SupplyAC 220V 50HzWeight30kg
