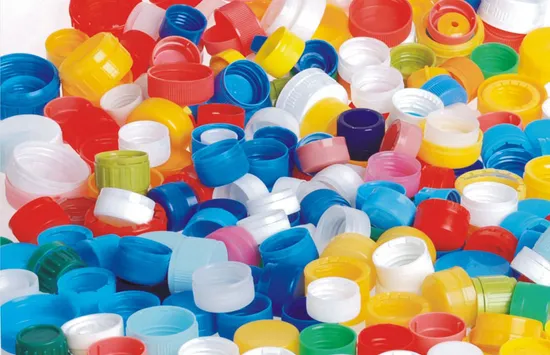

Plastic Pet Preform and Bottle Cap Mould Product
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZQ.
Shaping Mode
Injection Mould
Runner System
Hot Runner
Cavity Quantity
24
Customized
Customized
After-sales Service
Engineers Available to Service Machinery Overseas
Certificates
ISO9001:2008
Delivery Date
40 Days
Auto Systems
Fully Automatic
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
ISO9001
Trademark
ZQ
Origin
Huangyan, China
Production Capacity
30 Sets/Month
Product Description
Plastic PET Preform and Bottle Cap Mould ProductInjection molding systems are available from 88 to 1280 tonnes (880 to 12800 kN) and up to 96 cavities.
Injection systems offer:
1. Faster cycles
2. Reduced energy consumption
3. Smaller footprint
4. Improved repeatability
5. Rapid set-up
This machine can manufacture Plastic PET Preform and Bottle Cap Mould Product.
Plastic PET Preform and Bottle Cap Mould Product apply to Plastic injection molding machine,equipment information.
| INJECTION MOLDING MACHINE | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| International size rating | 275/88 | 416/128 | 619/168 | ||||||
| INJECTION | A | B | C | A | B | C | A | B | C |
| Shot volume cm3 | 129 | 163 | 201 | 215 | 263 | 316 | 291 | 349 | 463 |
| Shot weight g | 121 | 153 | 189 | 196 | 239 | 287 | 273 | 328 | 435 |
| (PS) oz | 4.2 | 5.4 | 6.6 | 6.9 | 8.4 | 10.1 | 9.6 | 11.5 | 15.2 |
| Screw diameter mm | 32 | 36 | 40 | 38 | 42 | 46 | 42 | 46 | 53 |
| Injection pressure Mpa | 214 | 169 | 137 | 193 | 158 | 132 | 190 | 169 | 120 |
| Screw L: Dratio ----- | 23:1 | 20:1 | 18:1 | 22:1 | 20:1 | 18:1 | 23:1 | 20:1 | 18:1 |
| Screw stroke mm | 160 | 190 | 200 | ||||||
| Screw speed (stepless) r/min | 0-215 | 0-220 | 0-234 | ||||||
| CLAMPING SYSTEM | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Clamping force KN | 880 | 1280 | 1680 | ||||||
| Opening stroke mm | 320 | 380 | 430 | ||||||
| Platen size mm×mm | 550×550 | 620×620 | 700×700 | ||||||
| Space between tie bars mm×mm | 360×360 | 410×410 | 460×460 | ||||||
| Max.daylight mm | 680 | 810 | 930 | ||||||
| Mold thickness (Min-Max) mm | 150-360 | 150-430 | 180-500 | ||||||
| Hydraulic ejection stroke mm | 100 | 125 | 140 | ||||||
| Hydraulic ejection force KN | 31 | 42 | 50 | ||||||
| POWER UNIT | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Hydraulic system pressure Mpa | 16 | 17.5 | 17.5 | ||||||
| Pump motor KW | 7.5 | 11 | 15 | ||||||
| Heating capticy KW | 6.5 | 8.9 | 9.8 | ||||||
| Number of temp control zones | 3+(nozzle) | 3+(nozzle) | 3+(nozzle) | ||||||
| GENERAL | ZQ88-M6 | ZQ128-M6 | ZQ168-M6 | ||||||
| Dry-cycle time Sec | 1.1 | 1.3 | 1.8 | ||||||
| Oil tank capacity L | 200 | 220 | 300 | ||||||
| Machine dimensions(LxWxH) M x M x M | 4.42x1.07x1.72 | 4.86x1.09x1.75 | 5.04x1.17x1.97 | ||||||
| Machine weight Kg | 3500 | 4000 | 5000 | ||||||
Note: The specifications are subject to change without notice for the further improvement.
