Small Machine Concrete Cement Hollow Solid Paver Block Making Machine for Sale

Small Machine Concrete Cement Hollow Solid Paver Block Making Machine for Sale

US$3,800.00
1 Piece
US$3,500.00
2+ Pieces

Basic Info.

Model NO.
QTJ4-35
Certification
CE, ISO
Customized
Customized
Automatic Grade
Semiautomatic
Type
Vibration Molding
Power
9.3kw
Pressure
16MPa
Shaping
Vibration
Shaping Time
40s
Weight
1100kgs
Pallet Size
850X450/500/550mm
Capacity
2000-3000 PCS/Day
Pallet Quantity
500-600PCS
Labor Quantity
2-4
Power Voltage
220V/380V/450V
Transport Package
LCL or in Container
Specification
1550× 1650× 1800mm
Trademark
shengming
Origin
Shandong
HS Code
84748020
Production Capacity
2500PCS/Day

Packaging & Delivery

Package Size
1550.00cm * 1650.00cm * 1800.00cm
Package Gross Weight
1100.000kg

Product Description

QTJ4-35 Cement Concrete Solid/Hollow Block/Brick Making Machinery Paving Interlocking Paving Stone Making Machine Factory

Product description

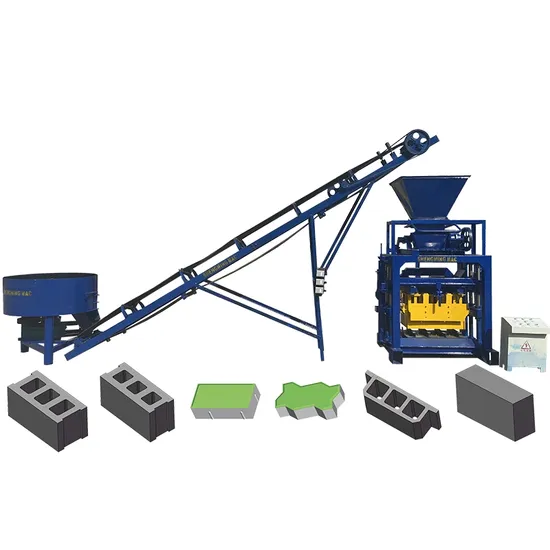

QTJ4-35 Cement Concrete Solid/Hollow Block/Brick Making Machinery Paving Interlocking Paving Stone Making Machine Factory is one kind semi automatic block making machine. The total production line includes mixer, belt conveyor and host machine. There are also two small free trolleys for you.
According to change different block mold, it can make different blocks such as hollow block, solid blcok and pavers.
The production capacity of QTJ4-35 is about 2500-3000 pcs one day.
Product main parameters
Total rated power 15.9 KW Workshop area 40M2
Daily capacity 1500-2500 pieces Power voltage 380V/220V AC
Pallet quantity 500-600 pieces Labor quantity 2-4 people
Water consumption 2-4T/day Forming period 35-40 S

Product line showing
QTJ4-35 Cement Concrete Solid/Hollow Block/Brick Making Machinery Paving Interlocking Paving Stone Making Machine Factory
Detailed pictures
Production time in factory
Block sample
Production capacity
Size (LXWXH)mm Pieces/mold Pieces/Hour Pieces/day
400x200x200 4 200-300 1600-2400
400x150x200 5 250-350 2000-2800
400x100x200 7 280-380 2200-3000
530X150X200 5 250-350 2000-2800
400X100X200 7 280-380 2200-3000

Molds production time
Finished blocks
Machine delivery from factory
QTJ4-35 Cement Concrete Solid/Hollow Block/Brick Making Machinery Paving Interlocking Paving Stone Making Machine Factory
Factory showing
Customer visit
Company certificate
FAQ
Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement
Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally
Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
