Basic Info.
Model NO.
FMJ1313 / FMJ1515
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Laser Flame Cutting
Control System
Shanghai Cypcut Controller
Fiber Generator
Reci / Max / Raycus / Ipg
Reducer
Motovario / Shimpo
Laser Cutter Head
Raytools / Lasermech (Optional)
Motor
Yaskawa/ Panasonic /FUJI
Gudie Rail
Hiwin / PMI (Optional)
Cutting Speed
20m/Min--- 60m/Min
Auxiliary Gas
Oxygen, Nitrogen, Air
Transport Package
Standard Export Plywood Package
Specification
1300 x 1300 mm
Origin
Jinan Shandong China
Production Capacity
100 Sets/Month
Product Description

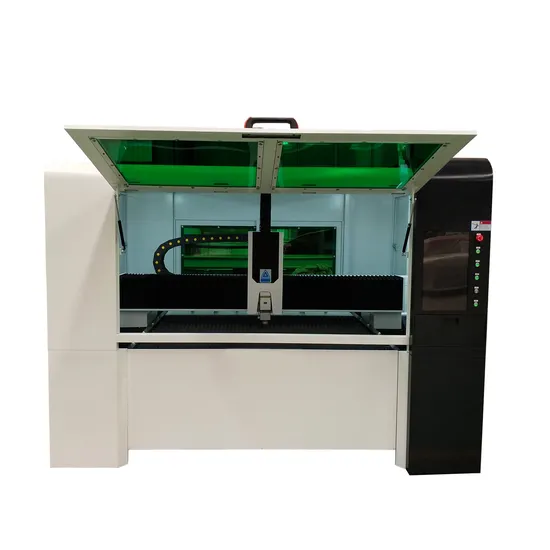

Fiber Laser Cutting Machine 1313 1515 Raycus 3KW 6KW Metal Laser Cutting Machine
Product Description
New CNC Metal Plate Small Fiber Laser Cutting Machine
FIRMCNC Brand fiber laser cutting machine factory directly sale, 2 years warranty, the whole life technical support.
FIRMCNC Fiber Laser Cutting Machine
1. Working area: 1300*900mm, 1300*1300mm, other size can choose.
2. Fiber laser power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 8000w, 12000w etc.
3. Fiber laser generator brand : RAYCUS, MAX, JPT, IPG etc.
4. Laser cutting head you can choose Raytools/wsx/precitec ect.
5. Rotary axis, Exchange table, Whole cover for choose.
FIRMCNC Fiber Laser Cutting Machine Features:
1. Equipped with high-performance laser device associated with stable operation system enables optimal cutting effects.
2. Auto fouse fiber head, automatic height-adjustment performance keeps constant focal length and stable cutting quality.
3. High precision aluminum gantry, inblock aluminum cast cross beam, make the device highly rigid, stable and antiknock.
4. Japan servo motor and drivers system, famous brand top quality, high speed, big power, motor's max torque can reach 350% which may shorten speed up and slow down time.
5. Industrial water cooling system, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
6. Imported high precision ball screw and guide rail drive system, with top quality configuration
Main parts and samples
Control System
*Brand: CYPCUT(Top one in China)
*Details: Auto edge seeking function and flying cutting function, Intelligent typesetting etc.
Supported Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,NC,GBX etc...
Fiber Laser Source
--Brand: Raycus (optional RECI / MAX / IPG)
--100,000 hours life time, more stable, cost-efficient, Free maintenance.
--The best brand in the world, quality and timely service have assurance.
--The Gold partner with IPG laser source company
Laser Head:
*Brand: Raytools laser head
*Advantages:
--High Precision: without manual, zero fault.
--High Effectiveness: Without manual,Save time
--High Safety: Anti-collision design, height adjustment high sensitivity
Servo Motor
*Brand: Japan YASKAWA & PANASONIC
*Details:
--X axis: Japanese YASKAWA servo motor and driver.
--Y axis: Japanese YASKAWA servo motor and driver.
--Z axis: Japan YASKAWA servo motor and driver.
Higher power of motor and drive makes higher moving speed for laser head.
Machine Bed
*Type: The Segmented Rectangular Tube Welded Bed
*Structure advantage:
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
*For material :
Through 600ºC heat treatment to keep stronger and more solid.
*Feature:
High strength, stability, tensile strength, ensuring 20 years of use without distortion.
Techncial specification:
Working area | 1300 x 900mm |
XYZ axis travel | 1325mm/925mm/100mm |
Minimum line width | <0.1mm |
Laser Power | 1000W-12000W |
X / Y axis positioning accuracy | ±0.02mm |
Repeatability positioning accuracy | ±0.01mm |
Maximum Acceleration | 1.5G |
Maximum Idle Running Speed | 120m/min |
Maximum worktable load | 600KG |
Power Supply Rated Voltage | 3-phase 380V/50Hz or Custom made |
Machine weight | 4000KG |
Applicable materials for fiber laser cutting machine
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
FIRMCNC--CNC Machine manufacturer.
Including: Laser Cutter, Laser Engraver, Laser Marker, Laser Welder, CNC Router, Mould CNC Milling Machine, CNC Wood Lathe, CNC Plasma Cutter and CNC Knife Cutter etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular
among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
FAQ
Q1.Can you recommend a fiber laser cutting machine to me ?
Yes, In order to give you a suitable fiber laser cutting machine,pls tell me your working area ? processing materials ? Then perfect suitable machine will be recommend.
Q2.Do you have operation manual and working video?
Yes,we will send it together with machine.
Q3.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
Q4.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts. usually for all parts can perfect working one year without any broken .
Q5.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at your factory, you only need to pay the round air tickets cost and accommodation for technician.
