Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Certification
GS, CE, ISO 9001
Transport Package
Wooden Box
Specification
2250*1350*1530mm
Production Capacity
2000units/Year
Product Description
Product Description
Mobile scissor lifting platform is a piece of special equipment for aerial work with wide applications. Its scissor-type mechanical structure makes the lifting platform has higher stability. A wide space platform and higher load capacity make the work range more larger and suitable for many people to work at the same time. It makes aerial working more efficient and safer. Mainly used for the station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.
Product Parameters
Model No. | Table Size (mm) | Loading Capacity (kg) | Platform Height (m) | Working Height (m) | Overall size (mm) | N.W.(kg) |
DYMG04 | 2100*830 | 500 | 4 | 6 | 2250*950*1100 | 800 |
DYMG06 | 2100*830 | 500 | 6 | 8 | 2250*950*1200 | 880 |
DYMG07 | 2100*830 | 500 | 7 | 9 | 2250*950*1280 | 970 |
DYMG08 | 2100*930 | 500 | 8 | 10 | 2250*1060*1380 | 1050 |
DYMG09 | 2100*930 | 500 | 9 | 11 | 2250*1060*1500 | 1165 |
DYMG10 | 2100*1230 | 500 | 10 | 12 | 2250*1350*1530 | 1360 |
DYMG11 | 2100*1230 | 300 | 11 | 13 | 2250*1350*1650 | 1400 |
DYMG12 | 2550*1530 | 500 | 12 | 14 | 2796*1670*1750 | 2260 |
DYMG14 | 2812*1530 | 500 | 14 | 16 | 3067*1730*1810 | 2400 |
DYMG16 | 2812*1600 | 300 | 16 | 18 | 3067*1800*2080 | 3500 |
DYMG18 | 3070*1600 | 300 | 18 | 20 | 3321*1810*2080 | 3900 |

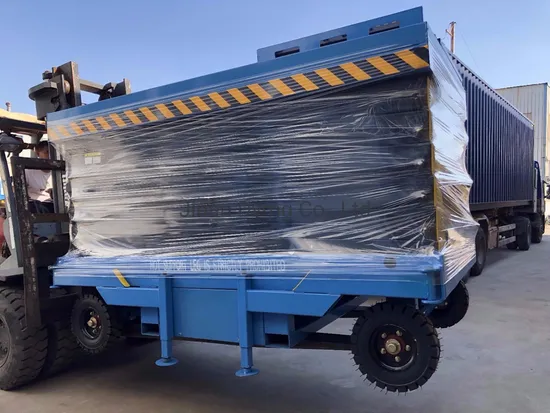

Detailed Photos
Main Features
1. The lifting mechanism is made of high-strength manganese steel rectangular tube;
2. Equipped with a lifting platform overload hydraulic safety protection system;
3. Equipped with anti-fall safety protection device to prevent pipeline burst;
4. It is equipped with a manually controlled lowering valve for emergency descent in case of power failure;
5. Optional telescopic table to expand the range of aerial work;
6. Optional solid tires;
7. Optional manual hydraulic pump as lifting power;
8. Optional AC two-phase power or three-phase power as power;
9. Optional DC battery or diesel motor for power.
Strength Factory
After Sales Service
1.User-friendly English manual for machine using and maintenance.
2.One year warranty for the whole machine without man-made fault.
3.We will send you parts for free if there are any non-human factors problem during warranty time.
4.24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.
FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 24 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
