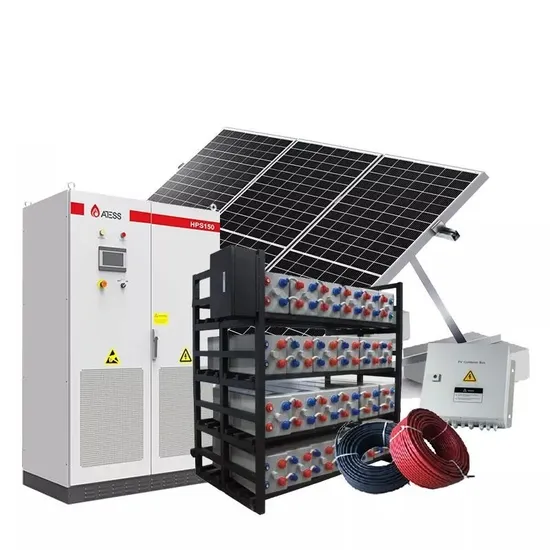

1385 Solar Renewable Energy Hot Selling Install 5kw on-Grid Solar Systems 500kw 1000kw 1MW Grid-Tied Solar Panel Kit for Solar Power Plant

Product Description

Product Parameters

Name	500KW On-grid Description	Quantity
Solar Panel	Mono Half Cell 650 Watt PV Module	770 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	Few Sets
On-Grid Inverter	500KW Three Phase 380/400Vac	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	Few Sets
DC Cable	4mm2	1000 Meters
MC4 Connector	4mm2 1000VDC	100 Pairs
Mounting System	Standards Pitched Roof ( Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	5 Sets

Note: Product dimensions and physical appearance in this data sheet are nominal. Alicosolar reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.On Grid System Configuration

1.Solar Panel

2.On Grid Inverter

3.Switch Box

4.Power Meter

Mono Solar PanelsPeak Power Watts: 380-690W
Maximum Power Voltage: 32.2-45V
Maximum Power Current: 9.02-18A
Open Circuit Voltage: 39.5-55V
Short Circuit Current: 9.55-19A
Weight:18.6 kg - 35 kg
Tier 1 Standard
12 years quality warranty
30 years power warranty
On-Grid InverterMax.DC Input Power: 500KW
Max. DCInput Voltage: 1500V
MPPT Voltage Range: 120-1200V
Rated Grid Voltage: 208/240V(US); 230V(EU);380/400V
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.
Support parallel.
Remote Monitoring SystemData Logging Stick allows you to receive information from the solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, Lan, or GPRS.
App Available for PC, IOS & Andriod
PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Projects Shown
12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015
20MW Ground Solar Plant in USA
50MW Solar Plant in Brazil
20KW Solar Plant in Mexico
