US$2,770.00-5,430.00
|
1 set
(MOQ)
|
Basic Info.
Model NO.
1BZD-2.8/3.3/3.8
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Horizontal Axis
Color
Red, Blue,Green, Other Colors
Match Power
80-180HP Tractor
Trade Term
Fob, CIF, Crf, etc
Transport Package
Iron Crate
Specification
Heavy duty disc harrow
Production Capacity
5000 Sets / Month
Product Description

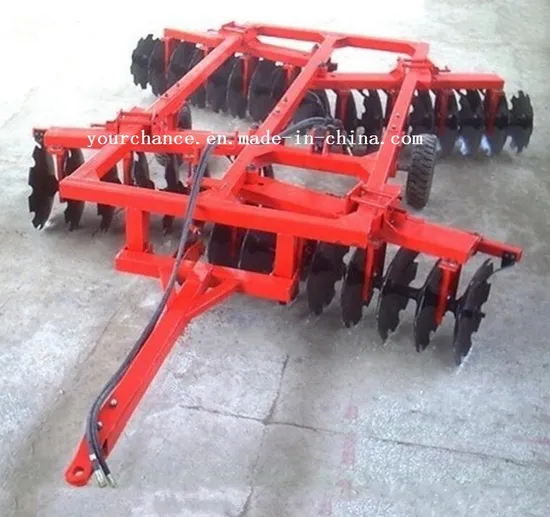

Hot sale Farm implement 1BZD series Tractor mounted Hydraulic Opposed Hydraulic Disc harrow
Main Features and Usage:
1BZD Series Hydraulic Opposed Heavy-duty Disc Harrow is adopted frame type symmetrical structure, can eliminate the deflected tractive force produced by the implement on the tractor during the working process.
This harrow is suitable for cleaning stubble before tillage and breaking the soil after tillage in the waste land, marsh and brush land and heavy soil.
Main Specification and Technical Parameters :
Model | 1BZD-2.8 | 1BZD-3.3 | 1BZD-3.8 |
Overall dimension (mm) | 5120*2700*1500 | 5260*3200*1500 | 5330*3680*1500 |
Working width (mm) | 2800 | 3300 | 3800 |
Working depth (mm) | 180~220 |
No.of blades (pcs) | 24 | 28 | 32 |
Weight (kg) | 2050 | 2600 | 3100 |
Matched power(hp) | 80~100 | 100~120 | 120~160 |
1BZD Series Disc harrow main Features and Specification :
Disc harrow by Iron crate packing:
High quality Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
Best price will be quoted for you as soon as receive your Requirement !
