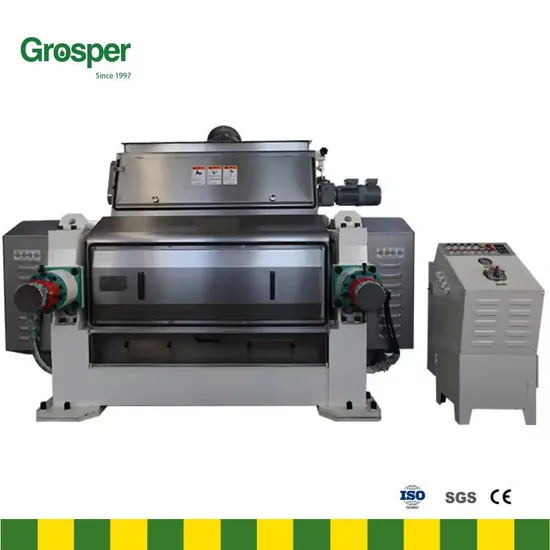

Grosper Corn Flaking Mill Machine Flaker FC7150f High Capacity Machines for Cattle and Sheep Feed Production
| US$110,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FC7150F
Processing Object
Cereals
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Condition
New
Applicable Materials Shape
Granular
Warranty
1 Year
Capacity
200-220
Roller Size
711*1500
Flake Thickness
1.2-2
Reducer Power(Kw)
1.1
Chill Depth(mm)
30-35mm
Rotatal Speed(Rpm)
305
Specification
2700*2400*2100
Trademark
Grosper
Origin
China
Production Capacity
200-220
Product Description
| Type | Model | Capacity(T/D) | Flake thickness(mm) | Roller size(mm) | Power(kw) | Dimensions (mm) | Weight(T) |
| Corn flaking mill | FC7175SF | 240 | 1.2-2 | 711*1750 | 110/132*1+2.2+1.1 | 3200*2500*1900 | 16.7 |
| FC7150SF | 200 | 1.2-2 | 711*1500 | 110*1+2.2+1.1 | 3000*2500*1900 | 15.5 | |
| FC7150F | 200 | 1.2-2 | 711*1500 | 55*2+2.2+1.1 | 2700*2500*1800 | 15 | |
| FC6150F | 160 | 1.2-2 | 600*1500 | 37*2+2.2+1.1 | 2600*2200*1750 | 8.5 | |
| FC6125F | 120 | 1.2-2 | 600*1250 | 30*2+2.2+1.1 | 2300*2100*1650 | 6.5 | |
| FC6100F | 70 | 1.2-2 | 600*1000 | 22*2+2.2+1.1 | 2000*2100*1650 | 6.1 | |
| FC6060F | 50 | 1.2-2 | 600*600 | 15*2+2.2+1.1 | 1500*2100*1530 | 4.2 | |
| FC4150F | 100 | 1.2-2 | 400*1500 | 22*2+2.2+1.1 | 2350+1240+1870 | 4 | |
| FC4080F | 50 | 1.2-2 | 400*800 | 15*2+2.2+0.75 | 1550*1240*1870 | 3 |
FC7150SF
1: FC series corn flaking machine is one of the main equipment for producing steam corn flakes. The layout of this series of corn flakers is reasonable and compact, reducing the space.
2: The whole machine adopts fully enclosed, stainless steel structure.
3: We use China's first heavy roll blank which are poured by a centrifuge imported from Germany, processed by Grosper independently, and has passed a strict dynamic balance test. The chill of the roller is made by Ni Cr Mo alloy, and the chill depth is 35+/-5mm.
4: The hydraulic system adopts intermittent hydraulic pump station with PLC, which is highly efficient and energy-saving.
5: The thickness of the flakes can be adjusted without stopping the machine. This is our invention patent.
6: The modular design structure reduces the technical difficulty of equipment maintenance and roll replacement.
7: It allows customers to complete the replacement of parts by themselves in a short time.
| Technical Parameter of Flaker Model FC7150F | |||||
| 1 | Equipment name | Grain Flaker model FC7150F | 2 | Model | FC7150F |
| 3 | Chinese Trade Mark | Liaohai Pearl | 4 | Abroad Trade Mark | Grosper |
| 5 | Capacity(T/D) | 200-220 | 6 | Raw material | Corn |
| 7 | Roller size(mm) | φ711*1500 | 8 | Chill depth(mm) | 30-35mm |
| 9 | Roller materials | High Ni Cr Mo alloy | 10 | Chill hardness (hs) | 75±3 |
| 11 | Flake thickness(mm) | 1.2-2 | 12 | Rotatal speed(rpm) | 305 |
| 13 | Total motor power(kW) | 93.3(113.3) | 14 | Drive motor power(kW) | 45*2(55*2) |
| 15 | Reducer power(kW) | 1.1 | 16 | Weight(≈t) | 15 |
| 17 | Dimensions(mm) | 2700*2400*2100 | 18 | Bearing type | 22336CAK/W33 |
| 19 | Pulley type | 5SPC710-5050-130,5SPC224-3535-75 | |||
