Laundry Soap Detergent Production Line Mixing Tank

Laundry Soap Detergent Production Line Mixing Tank

US$4,300.00-7,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PYG
Application Area
Chemical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Cutsomised
Warranty
1 year
Working
High Speed Mixer
Model Item
Pyg-50 Pyg-200 Pyg-1000 Pyg-2000 Pyg-5000
Tank Work Volume:L
50 200 1000 2000 5000
Motor Power for High Shear Emulsifying:K
1.1 1.5 4.0 5.5 15
Agitator Speed for High Shear Emulsifyin
0-1400 or 0-2900
Motor Power Propeller Type Agitator G:Kw
0.37 0.75 2.5 3.0 5.5
Agitator Speed for Propeller Type Agitat
0-150
Motor Power Anchor Type Agitator G:Kw
0.55 1.5 4.0 5.5 11
Agitator Speed for Anchor Type Agitator
0-45
Inside Shell Pressure MPa
-0.1/0.3 (Can Be Done as Client′s Urs)
Jacket Pressure MPa
0.3 (Can Be Done as Client′s Urs)
If Heating by Electrical Element in The
4 8 16 30 50
Jacket Heating Medium for Electrical Ele
Steam/Hot Water
Jacket Type
Single Full/Limpet Coil/Dimple Jacket /Inside Coil
Mixer Type
Homogenizer
Layout Type
Verticle
Transport Package
Wooden in Package
Specification
20L-10000L
Trademark
JOSTON
Origin
Wenzhou
HS Code
8479820090
Production Capacity
30 Sets/Month

Product Description

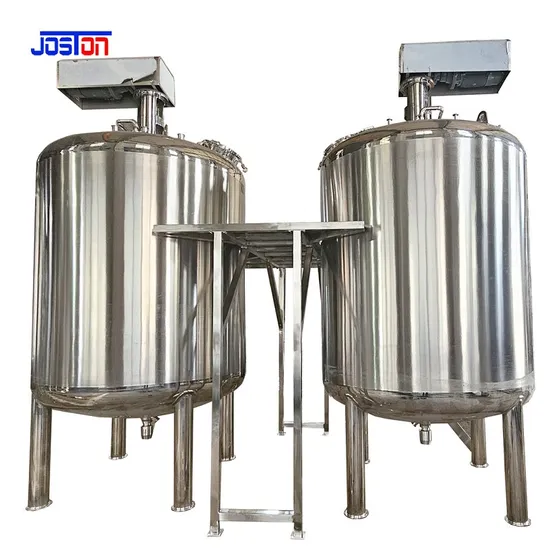

Product Description Solution Preparation Mixing Tank
Solution preparation Mixing Tank is used to mix one or several materials together according to the technological proportions. Which can fit pharmaceutical and food industrial GMP requirement . Solution preparation Mixing Tank is one kind of liquid preparation equipment,it is required for the deployment of the material dissolved in the solution of the quantitative,reach a certain concentration or content,and the bleaching & filtering process to obtain solution for other proceed,it is in the pharmaceutical industry as syrup solution,water injection,infusion solution,lyophilized powder etc.
Top mounted agitator type Solution Preparation Mixing Tank Advantages Volume we can produce from 20L ---20000L. Material we can use SS304 and SS316L. etc. it can used in single layer or double jacket layers. Jacket can be used different type : single full jacket ,limpet coil jacket and dimple type jacket. Jacket can be used for heating and cooling . top mounted agitator : propeller type ,anchor type ,high shear emulsify type and scraper type etc. Insulation material can use mineral wool ,rock wool ,PUF etc. Tank can be equipped with manhole ,CIP spray ball ,vent filter level sensor ,temperature sensor ,pressure sensor ,load cell ,PH sensor ,PO2 sensor ,safety valve,sampling valve etc. Tank can be CIP/SIP online. control panel :PLC /HMI automatic control or common button control . inside shell mirror polish Ra<0.4um ,outside shell polish Ra<0.8um. Detailed Photos
Product Parameters Technical description
Model
Item
PYG-50 PYG-200 PYG-1000 PYG-2000 PYG-5000
Tank work volume:L 50 200 1000 2000 5000
Motor power for high shear emulsifying:Kw 1.1 1.5 4.0 5.5 15
Agitator speed for high shear emulsifying :RPM 0-1440 or 0-2900
Motor power propeller type agitator g:Kw 0.37 0.75 2.5 3.0 5.5
Agitator speed for propeller type agitator :RPM 0-150
Motor power anchor type agitator g:Kw 0.55 1.5 4.0 5.5 11
Agitator speed for anchor type agitator :RPM 0-45
Inside shell pressure MPa -0.1/0.3 (can be done as client's URS)
Jacket pressure MPa 0.3 (can be done as client's URS)
Jacket heating medium Steam/hot water
Jacket type Single full/limpet coil/dimple jacket /inside coil tube

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
4.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
5.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
6.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
