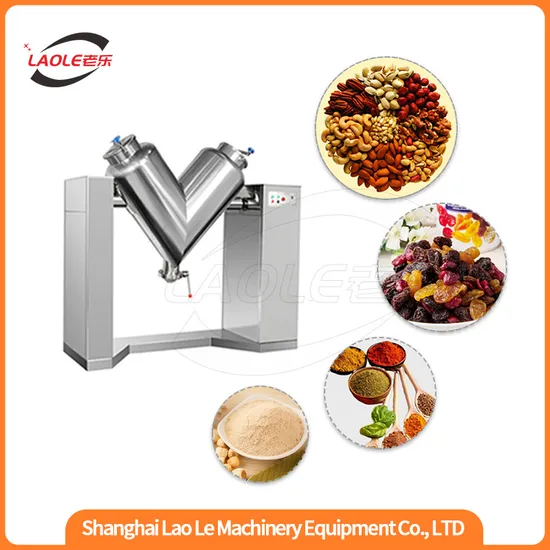

Vh-30 Suitable for Powder and Granular Materials High Efficiency V-Type Mixer

Vh-30 Suitable for Powder and Granular Materials High Efficiency V-Type Mixer

US$1,715.00-2,215.00 1 Piece (MOQ)

Basic Info.

Model NO.
Vh-30
Application
Granules, Powder
Application Area
Pharmaceutical
Certification
ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Spiral
Voltage
220V
Warranty
One Year
Working
High Speed Mixer
Can It Be Customized
Yes
Material
Stainless Stee
Delivery Time
Fast
Mixer Type
Agitator
Layout Type
Horizontal
Operating Type
Cycle Operating
Transport Package
Standard Export Non Fumigation Wooden Box Packing
Specification
750*370*550mm
Trademark
laole
Origin
Shanghai, China
HS Code
8474390000
Production Capacity
500 Units/Month

Packaging & Delivery

Package Size
80.00cm * 60.00cm * 100.00cm
Package Gross Weight
120.000kg

Product Description

Product Description
Product Description
Features of VH High Efficient Mixer (V Shape Mixer)
Our high efficient mixer (V shape mixer) adopts V shape unsymmetrical charging barrels to mix the materials. With a reasonable structure and easily operated, this machine can mix materials without any corner untouched and it is highly efficient. The charging barrels are made up of stainless materials with smooth walls inside which are easy to clean. It is an ideal facility for the enterprises. 1) Materials: carbon steel, stainless steel 2) Batch capacity: 2L--5000L 3) Unique structure able to mix efficiently, with no dead corners 4) Easy to feed, discharge, clean and replace materials Technique Parameter:
Parameters of VH High Efficient Mixer (V Shape Mixer):
Model VH-2 VH-5 VH-8 VH-20 VH-30 VH-30
Barrel capacity(L) 2L 5L 8L 20L 30L 30L
Feed volume (L) 1L 3L 4L 10L 15L 15L
Feed weight (kg) 500-600g 2kg 5kg 8kg 10KG-20KG 10KG-20KG
Agitation speed (r/min) 24r/min 25 rpm 35r/min 20r/min 20r/min 20r/min
Motor power (KW) 0.25KW 0.55KW 0.55KW 0.75KW 0.75KW 0.75KW
Overall size(mm) 400*330*420 680*275*475 750×370×550 800×600×1000 800×600×1000 800×600×1000
Weight (KG) 19 60 60 120 120 120
Model VH-50 VH-100 VH-200 VH-300 VH-500 VH-1000
Barrel capacity(L) 50L 100L 200L 300L 500L 1000L
Feed volume (L) 20L 30L 80L 100L 200L 400L
Feed weight (kg) 20--25(KG) 30kg 80kg 120kg 200kg 400kg
Agitation speed (r/min) 24r/min 20r/min 20r/min 20r/min 20r/min 20r/min
Motor power (KW) 0.75KW 1.5KW 1.1KW 1.5KW 2.2KW 3KW
Overall size(mm) 1100*600*1150 2000X700X1450 2300×800×1700 2350*800*1800 2700*1000*2400 3000*900*2400
Weight (KG) 150 180 350 800 900 1000
Model VH-1500 VH-2000 VH-3000 VH-4000 VH-5000
Barrel capacity(L) 1500L 2000L 3000L 4000L 5000L
Feed volume (L) 800L 1000L 1300L 1800L 2000L
Feed weight (kg) 600kg 800kg 1000kg 1200kg 2000kg
Agitation speed (r/min) 20r/min 20r/min 20r/min 20r/min 20r/min
Motor power (KW) 4KW 5.5KW 7.5KW 11KW 11KW
Overall size(mm) 3400*1200*2900 3800*1200*2900 4100*1800*3100 4300*2000*3600 4800*2200*3800
Weight (KG) 1200 1400 1800 2200 4000
Recommended products
Recommended Products

Detailed Photos
Our Advantages

Our factory
Our Factory
Shanghai Laole Machinery Equipment Co., Ltd. Main sales:
1. Customized die for single punch tablet press, rotary tablet press, flower basket tablet press and tablet press.
2. Flat packaging machine (capsules, tablets, pills, liquids, pastes, etc.) We can produce mold effect drawings according to customer's requirements.
3. Small bag flexible packaging machine (granule packaging machine, powder packaging machine, liquid paste packaging machine) Capsule filling machine (semi-automatic capsule filling machine, automatic capsule filling machine, capsule powder removing machine)
4. A packaging production line for packaging machinery and equipment (counting machine, sealing machine, bottle unscrambler, capping machine, dryer, labeling machine)
Tablet press supporting equipment:
Mixer (dry powder V-type mixer, trough-type wet material mixer, three-dimensional mixer) Granulator (wet process rocking granulator, dry granulator, rotary granulator) Sugar Coating Machine, Coating Machine, Pill Making Machine, Pulverizer, Tablet Counting Machine, Electronic Counting Machine Decoction machine, dryer, oven, drying equipment, vacuum feeder, powder removal sieve equipment Tablet press with vacuum cleaner, slicer, etc. We can produce mold renderings and drawings according to customer requirements, Sincerely look forward to cooperating with you, we will serve you wholeheartedly.
FAQ
FAQ
Q1: Are you a factory or a trading company?A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Yes, we are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions.
Q4: How could I get the spares on machines?
A: Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: What are the payment terms?
A: We usually accept T / T payment, credit insurance order and TT
Q6 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q7: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
