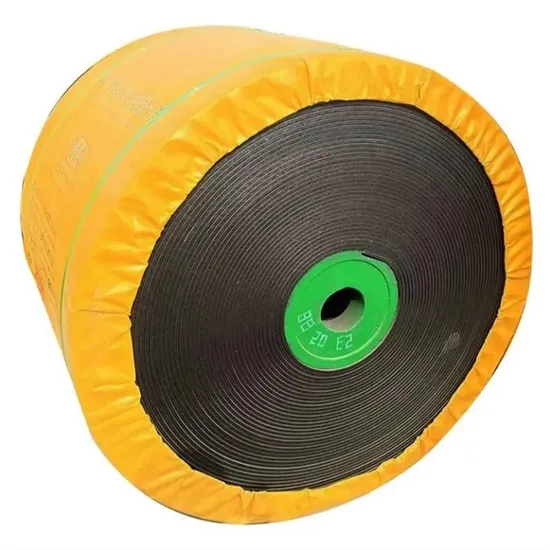

Multi-Ply Rubber Conveyor Belt Multi 4ply Belts Mould Edge Ep/Nylon/Cotton Canvas Conveyor Belt

Product Description

Product Description
Description of multi-layer fabric conveyor belt(EP/NN/CC):
The design of multi-ply fabric conveyor belt enables application in all areas of mateial handing.lt consists of rubbercover,carcass and core rubber.

Classified by canvas type:
1. EP conveyor belt:
EP canvas core conveyor belt: with high initial modulus, good thermal stability of the belt body size, and impact resistance, it is used for conveying materials under medium to long distance, large capacity, and high-speed conditions.
Applied to the transportation of materials in coal, mining, ports, metallurgy, power, chemical and other fields.
2. NN conveyor belt:
Nylon canvas core conveyor belt: The belt is lightweight, elastic, strong, impact resistant, and has good groove shape. Suitable for conveying materials over medium to long distances, large transport volumes, and high-speed conditions. There are nylon 6 canvas core and nylon 66 canvas core. The strengths of the two are roughly equal. However, nylon 66 has better thermal dimensional stability.
Widely used in mining, coal yards, chemical, metallurgical, construction, ports and other sectors.

3. CC conveyor belt:
Cotton canvas core conveyor belt: a traditional type of conveyor belt suitable for conveying non corrosive and non spiky block, granular, and powder materials at room temperature, such as coal, coke, sand and gravel, cement, etc.

Technical Parameters of multi-layer fabric conveyor belt(EP/NN/CC):

Belt Type	Fabric Ply	Carcass	Min.Ply Strength	# of Plies	Cover Thikness(mm)		Belt Width	Grade
			(N/mm)		Top Cover	Bottom Cover
EP Belts	EP100	1	100	2-8 Recommend Not To Exceed 6Plies	1.5-30	0-20	300-2200	Abrasion Resistant Heat Resistant Oil Resistant Acid/alkali/Cold/Fire Impact Resistant Etc
	EP125	1	120
	EP150	1.1	150
	EP200	1.2	200
	EP250	1.3	250
	EP300	1.4	300
	EP350	1.5	350
	EP400	1.6	400
	EP500	1.7	500
	EP600	1.8	600
NN Belts	NN100	1	100	2-10 Recommend Not To Exceed 8Plies	1.5-30	0-20	300-2200
	NN125	1	125
	NN150	1.1	150
	NN200	1.2	200
	NN250	1.4	250
	NN300	1.6	300
	NN400	1.7	400
	NN500	1.9	500
	NN600	2.1	600
CC Belts	CC56	1.1	56	3-12	1.5-30	0-20	300-2200

Recommended minimum roller diameter for conveyor:

Driver Pulley/Diameter/Belt Type	#Of Plies/Fabric Ply	2	3	4	5	6	7	8	9	10	11	12
EP Belts	EP100	200	250	315	400	500	630	800
	EP125	200	250	315	400	500	630	800
	EP150	250	400	500	630	800	1000	1250
	EP200	315	500	630	800	1000	1250	1400
	EP250	400	630	800	1000	1250	1400	1400
	EP300	500	800	1000	1000	1250	1400	1600
	EP400	630	800	1250	1250	1400	1600
	EP500	800	1000	1250	1400	1600
	EP600	1000	1250	1400	1600	1800			1000	1250
NN Belts	NN100	200	250	315	400	500	630	800	1000	1250
	NN125	200	250	315	400	500	630	800	1000	1250
	NN150	200	250	315	400	500	630	800	1250	1400
	NN200	250	400	500	630	800	1000	1250	1250	1400
	NN250	315	500	630	800	1000	1250	1400	1400	1600
	NN300	400	630	800	1000	1250	1400	1400	1600	1800
	NN400	500	800	1000	1000	1250	1400	1600
	NN500	630	800	1250	1250	1400	1600	1800
	NN600	800	1000	1250		1600	1800	2000	1250	1400
CC Belts	CC56	/	400	500	600	800	1000	1250			1600	1600

Physical property of cover rubber:

Cover layer Type	Tensile	Elongation		Abrasion	Change rate of tensile strengt and elonghation at break after aging
	mpa≥	kgf/cm³	%≥	mm³≤	%
Strong scratch working conditions(H)	24	240	450	120	-25~+25
Strong wear and tear working conditions(D)	18	180	400	100	-25~+25
General working conditions(L)	15	150	350	200	-25~+25

Cover thickness(0.8mm--1.6mm): tensile strength and elongation at break can be 15% below above is allowable.
Application
Application of multi-layer fabric conveyor belt
Company Profile
NANJING GUBAI RUBBER& PLASTIC CO. LTD was established in 2000. It is a limited liability company mainly engaged in the production of rubber products, integrating scientific research, technology, industry and trade. Our company is located in the western suburbs of Nanjing, 36 kilometers away from Lukou Airport and 76 kilometers away from Xinshengwu International Shipping Port, with very convenient transportation.
Our main products include: rubber sheet series; Conveyor belt series; Anti-corrosion lining series; Anti static series; Special rubber series; mold product series and plastic product series, More than 500 varieties and specifications of products, and can develop and produce various high-performance and high-quality rubber and plastic products accordingto customer requirements.
Our company has taken the lead in obtaining ISO19001 quality management system certification in the same industry, and participated in drafting national standards for industrial rubber sheets, national standards for fluororubber under general technical conditions, and industry standards for silicone rubber. The National Rubber Standards Committee has established a sub technical committee for environmentally friendly recycled rubber products and a working group for elastic paving materials in our company. Our company has also successfully established a research and development center in collaboration with the School of Materials Science and Technology, Nanjing University of Aeronautics and Astronautics. The Gubai brand trademark has been rated as a famous trademark in Jiangsu Province and a quality credit product in Jiangsu Province.
Our company is willing to sincerely cooperate with domestic and foreign friends with a sound quality assurance system, rigorous and orderly modern management, and a service tenet of high quality, high reputation, and high efficiency, to jointly create a better future for the rubber and plastic industry.
Rubber rolls workshop
Rubber strips workshop
Certifications
FAQ
1: Are you a manufacturer?
Yes , NANJING GUBAI RUBBER& PLASTIC CO. LTD is a limited liability company mainly engaged in the production of rubber products, integrating scientific research, technology, industry and trade.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment; Support third-party inspection.
3.What can you buy from us?
Our main products include: rubber sheet series; Conveyor belt series; Anti-corrosion lining series; Anti static series; Special rubber series; mold product series and plastic product series, More than 500 varieties and specifications of products, and can develop and produce various high-performance and high-quality rubber and plastic products accordingto customer requirements.
4. Why should you buy from us not from other suppliers?
Our company has 24 years of production experience, Our factory is about 1800 square meters ,Our capability is about 300000 tons one year .There are about 400 employees. 300 for production, and 100 for office people.We can produce 100 tons each day,and for exporting 500 containers around.
5. What certificate have you passed?
Our factory has passed ISO9001, ISO14001, ISO45001.Our product has passed reach standard testing,and SGS certificate.
6. How do you control your quality?
We inspect three steps:raw material inspection,during production inspection and before warehousing inspection.
7. How often do you inspect your products?
For physical testing,we test every batch,it's about every one hundred meters.
For the surface and size,we check every roll after production and before warehousing.
8. What's your product guarantee period?
Under the condition in the warehouse,we can guarantee two years no cracks even on our lowest grade product.On used products,it should depend on the using condition.
9. Can you print our logo on the rubber sheet or package bags?
Yes,we can print the logo as customer's design.
10. How to deal with the faulty products once we got ?
First ,find the reason ,it is the products problem or damaged by the transportation ,no matter what the reason is ,we will change a new part .
