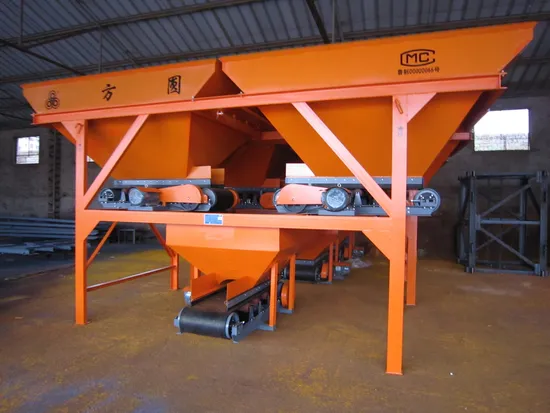

PLD1200 Ready Mixed Concrete Batcher Machine with 2 Hoppers

Product Description

PLD1200 series concrete batching machine uses electronic weighing, weighing accurate, high batching accuracy, high speed, strong control features; is the ready-mix concrete with the use of automatic batching equipment.
1.weighing system: The use of direct weighing sensor metering mode, accurate and reliable metering;
2.Storage Bin: Generous Storage Bin, feeding width 3100mm, meet 50 loader feeding;
3.Conveyor Belt: Belt Conveyor adopts no joint ring belt, guarantee the service life;
4.Control System, advanced batching control system, equipped with Special Operation Remote control handle, use more convenient!
5.calibration scale: Before leaving the factory are in the designated calibration scale area to electronic scale with weight to verify the accuracy of the measurement system!
6.the Structure Form: Many kinds of structure form, satisfies the export packing and the road freight transportation request!

Item	Unit	Parameter	Parameter	Parameter
		PLD1200	PLD1200-III	PLD1200-IV
Nominal volume	L	1200	1200	1200
Aggregate chamber		2*3m³	3*3m³	4*3m³
Weighing capacity	kg	1500	1500	1500
Loading height	mm	2780	2780	2780
Loading width	mm	3100	3100	3100
Total power	kw	6.6	10.6	14.6
Dimension(L*W*H)	mm	6270*2290*2900	9380*2290*2900	12490*2290*2900
